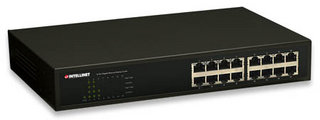

Intellinet 16Port - Desktop
Model 16Port - DesktopPart no. 523530EAN 766623523530
32 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight2.2 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 2.2 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 16Port - Desktop
- Part number
- 523530
- EAN / UPC
- 766623523530, 7666235235308
- Also known as
- Intellinet 16Port - Desktop Unmanaged Black
Specifications
32 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.512 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | LAN, Status, Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 14 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1024 Mbit/s |
| Dimensions (WxDxH) | 280 x 180 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50 Hz |
| Packet transfer speed | 1488000 pps |
| Power LED | Yes |
| Size (imperial) | 48.3 cm (19") |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, VCCI Class A |
