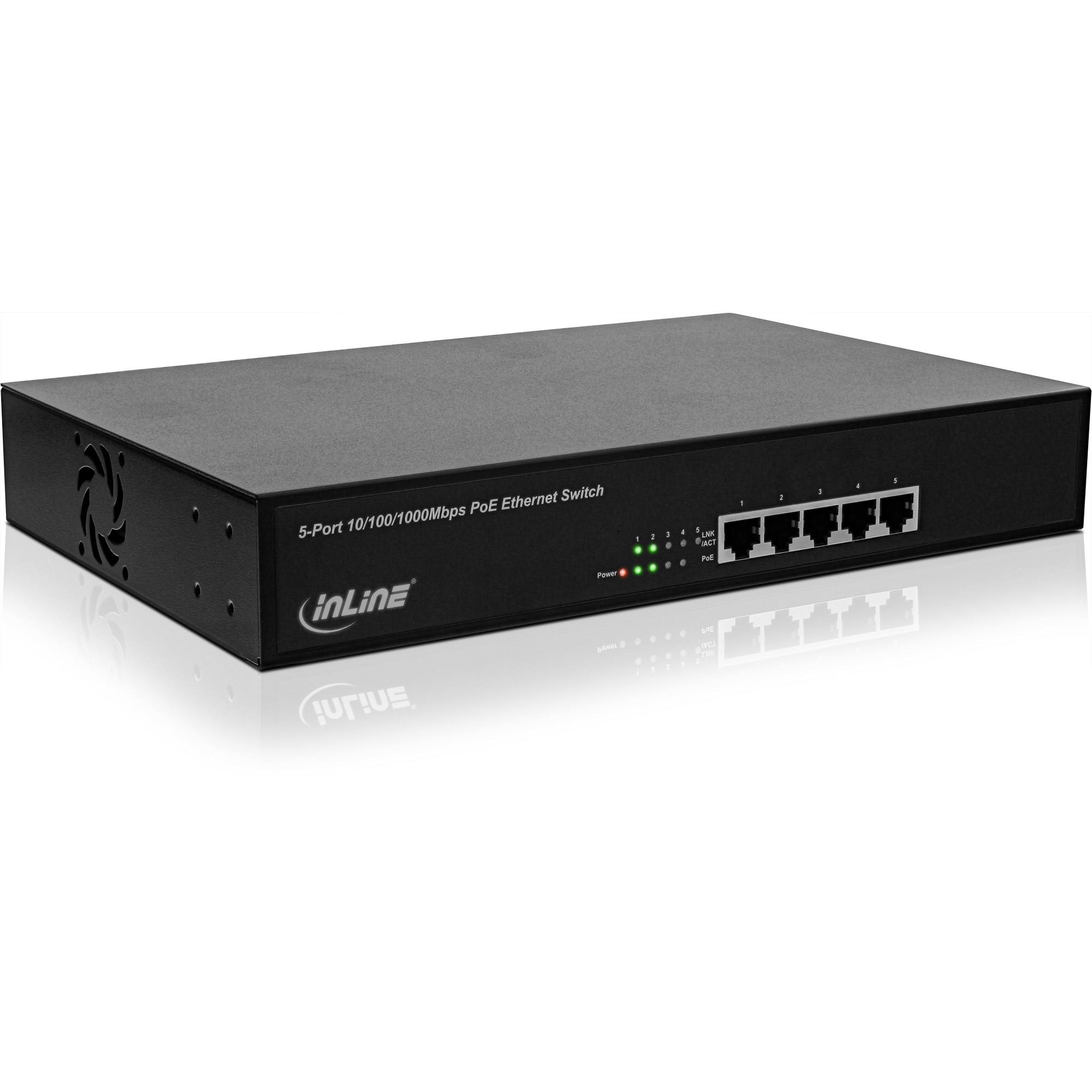

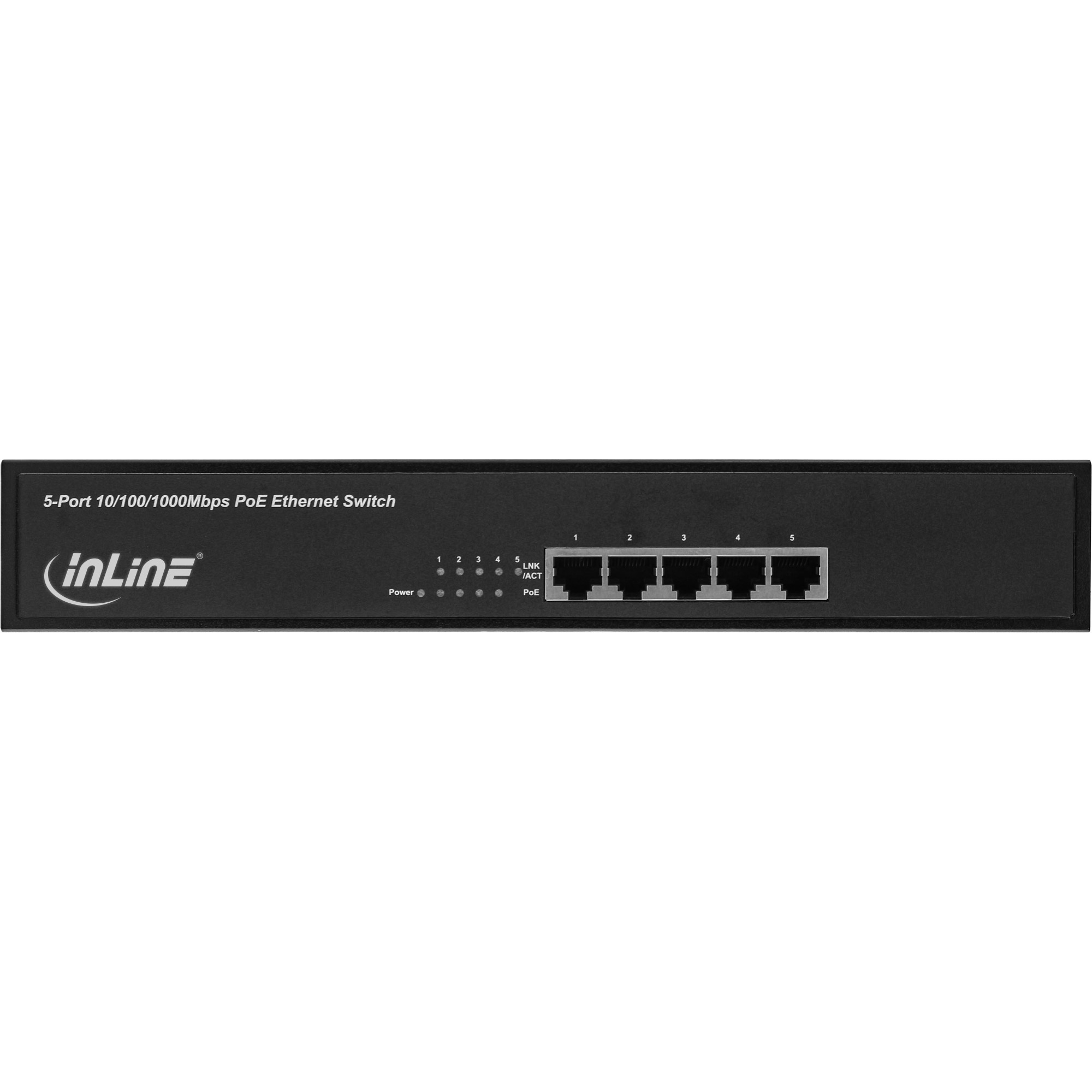

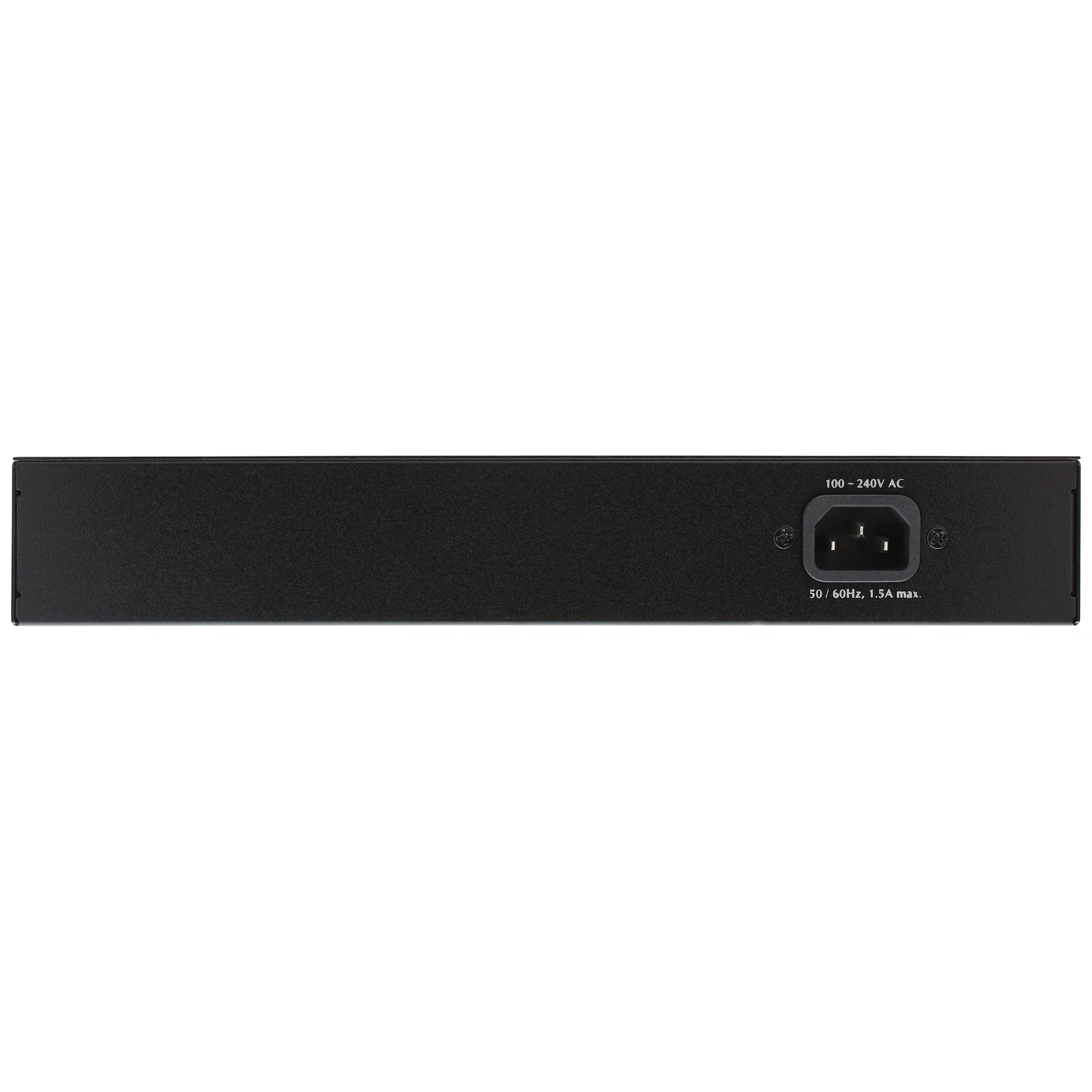

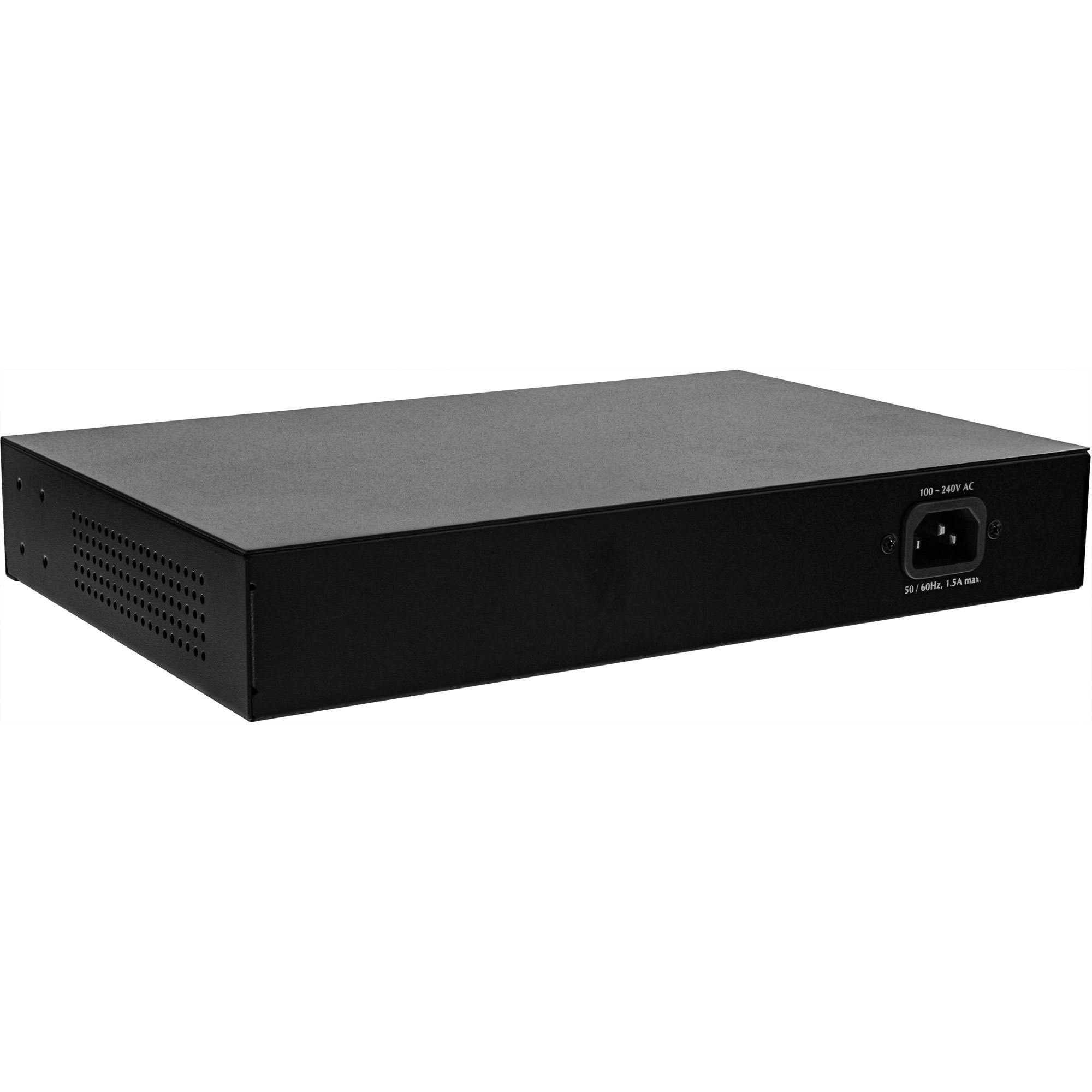

InLine PoE+ Gigabit Networking Switch 5 Port (4x PoE+),11" (19" brackets incl.)
Model NetzwerkgerätePart no. 32305PEAN 4043718250790
30 specifications
- Speed1000 Mbit/s
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table1000 entries
- Rack mountingYes
Overview
- Speed
- 1000 Mbit/s
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 1000 entries
- Rack mounting
- Yes
- Brand
- InLine
- Category
- Network Switch
- Model
- Netzwerkgeräte
- Part number
- 32305P
- EAN / UPC
- 4043718250790
- Also known as
- InLine PoE+ Gigabit Networking Switch 5 Port (4x PoE+),11" (19" brackets incl.)
Specifications
30 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 179 mm |
| Height | 44.5 mm |
Packaging data
| Specification | Value |
|---|---|

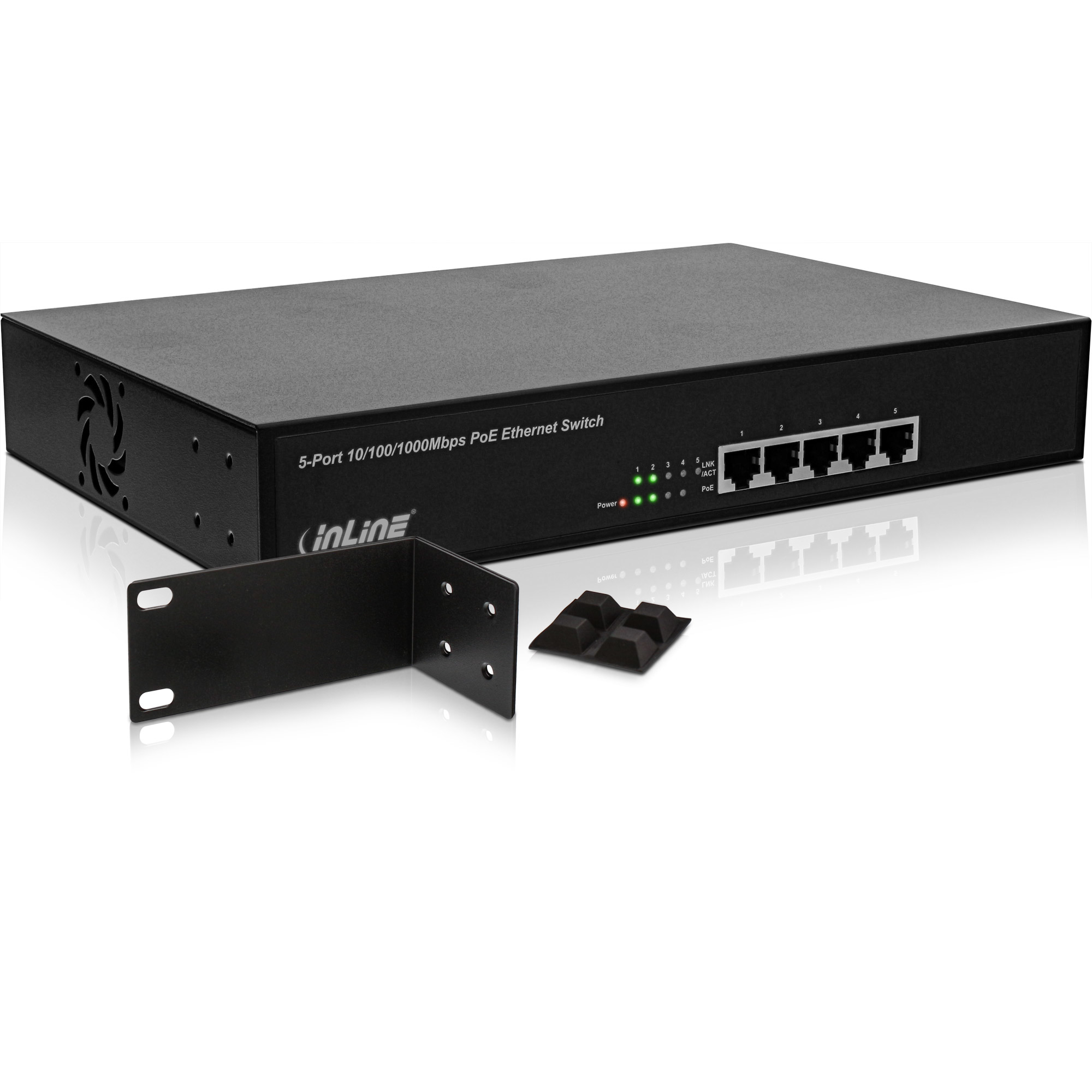

| Mounting brackets included | Yes |
