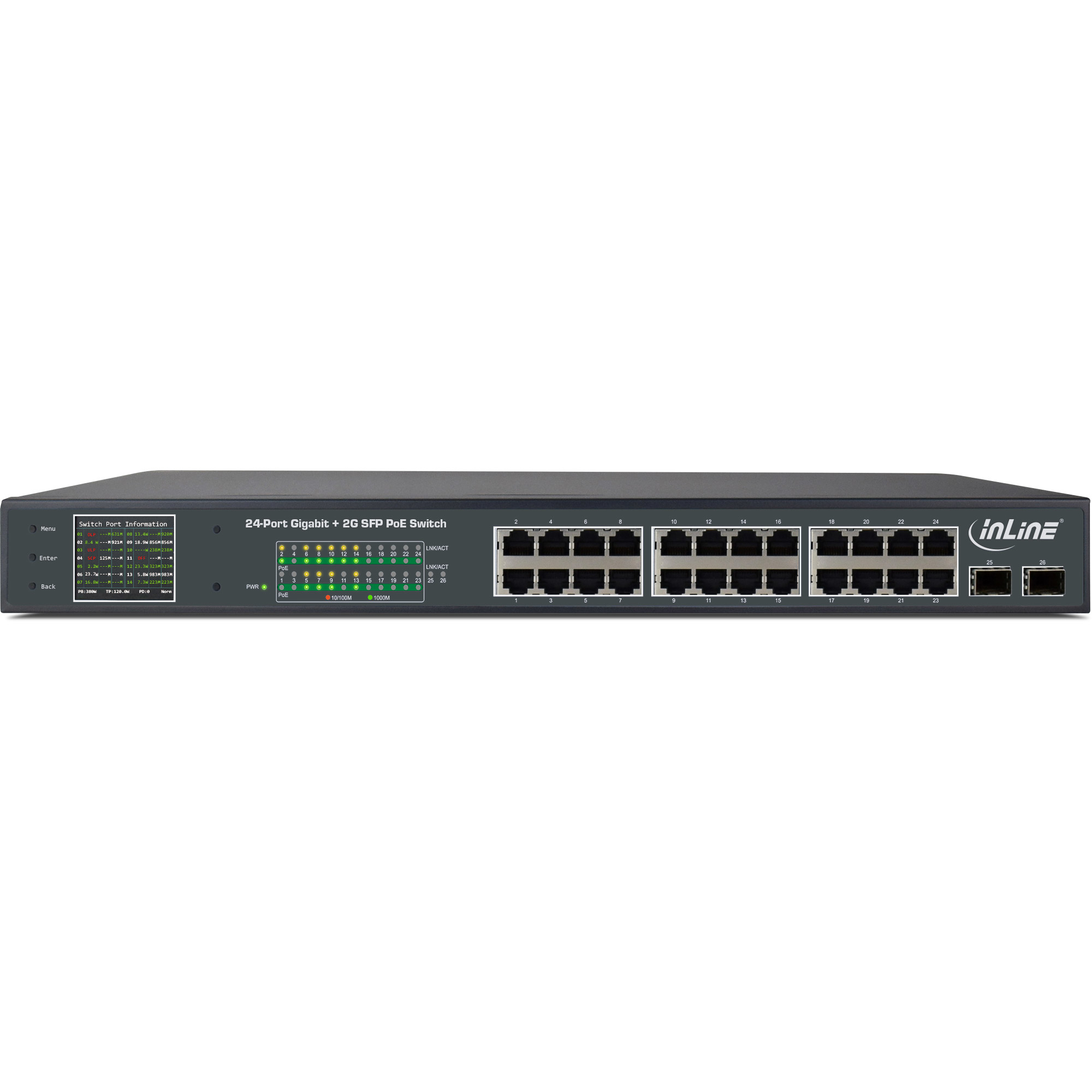

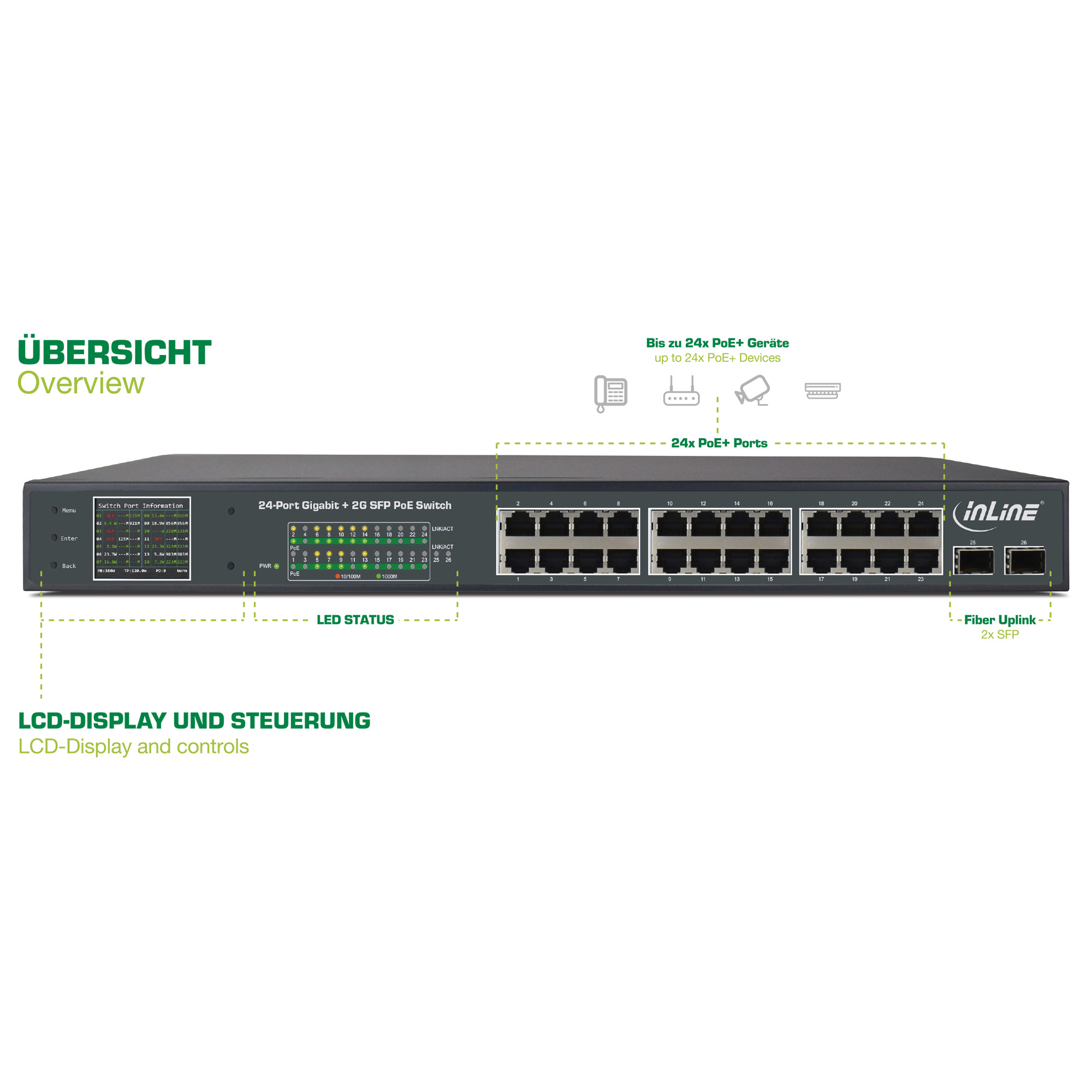

InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets)
Model 32324PEAN 4043718277810
53 specifications
- Speed1000 Mbit/s
- Type1U
- Weight4.7 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Speed
- 1000 Mbit/s
- Type
- 1U
- Weight
- 4.7 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- InLine
- Category
- Network Switch
- Model
- 32324P
- Part number
- 32324P
- EAN / UPC
- 4043718277810
- Also known as
- InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets)
Specifications
53 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-SX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.69 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 32 W |
| Total Power over Ethernet (PoE) budget | 380 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 39.58 x 230 mm |
| Ethernet LAN (RJ-45) ports | 24 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 39.6 mm |
| Height | 230 mm |
| Weight | 4.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 320 mm |
| Package depth | 495 mm |
| Package height | 74 mm |
| Package weight | 3.7 kg |
Compare InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets)
Compare any products- InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets) vsInLine PoE+ Gigabit Network Switch 24 portCompare specs

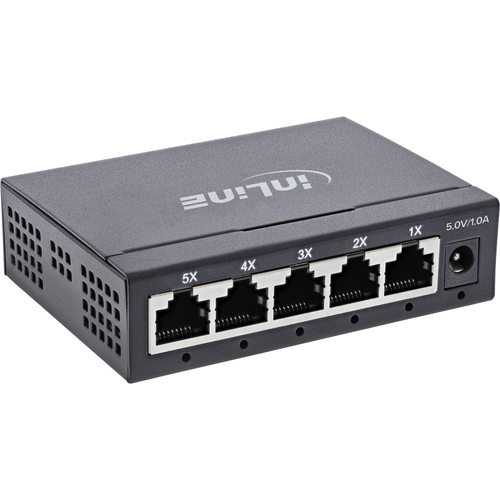

- InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets) vsInLine Gigabit network switch 5-portCompare specs

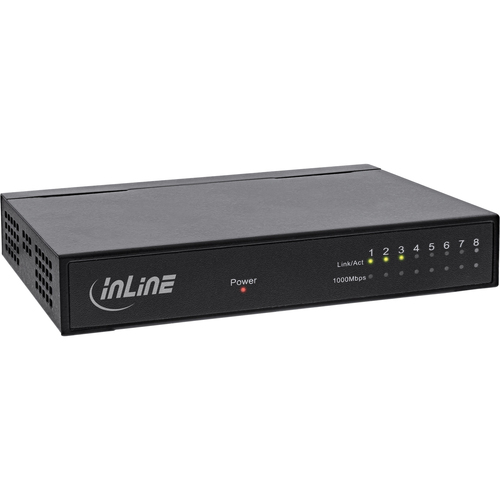

- InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets) vsInLine Network Switch 8-PortCompare specs
- InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets) vsInLine PoE+ Gigabit Networking Switch 5 Port (4x PoE+),11" (19" brackets incl.)Compare specs

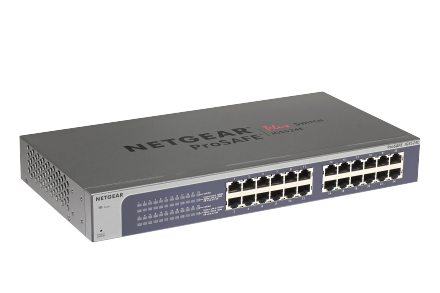

- InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets) vsNETGEAR JGS524Ev2 Managed Gigabit Ethernet (10/100/1000) GreyCompare specs
- InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets) vsD-Link DGS-3130-54S Managed L3 Black, GreyCompare specs
- InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets) vsDahua Technology PFS4226-24ET-240 Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U BlackCompare specs

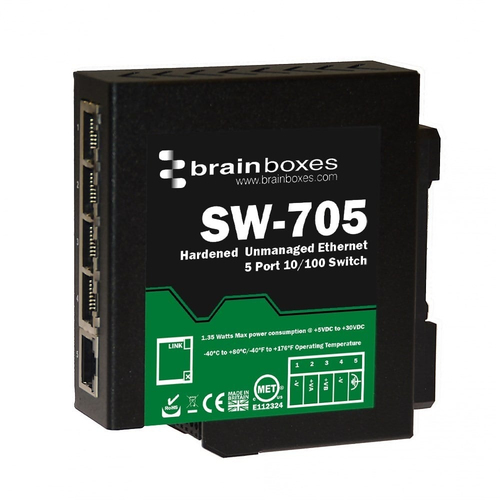

- InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets) vsBrainboxes Hardened Industrial 5 Port 10/100 Ethernet SwitchCompare specs
