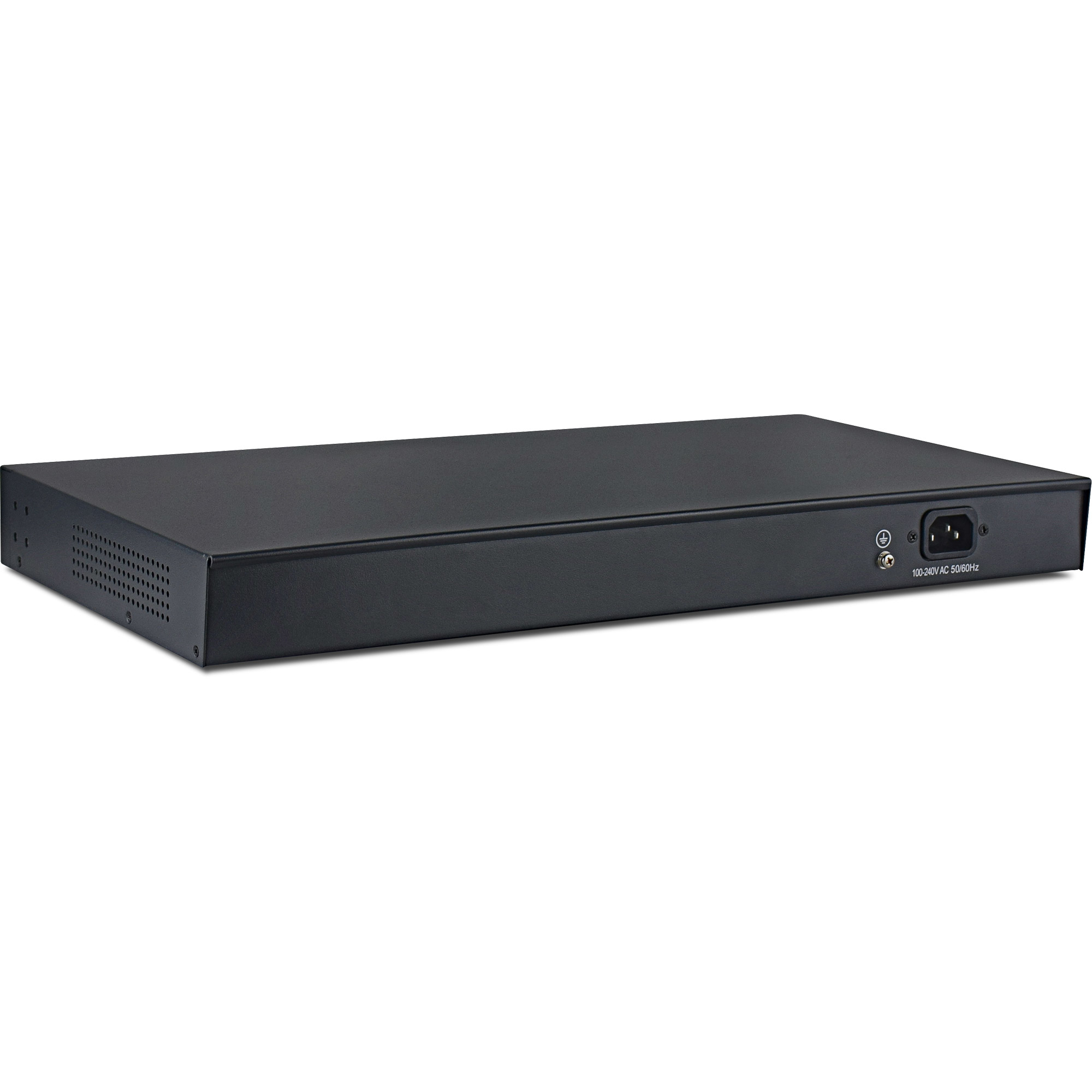

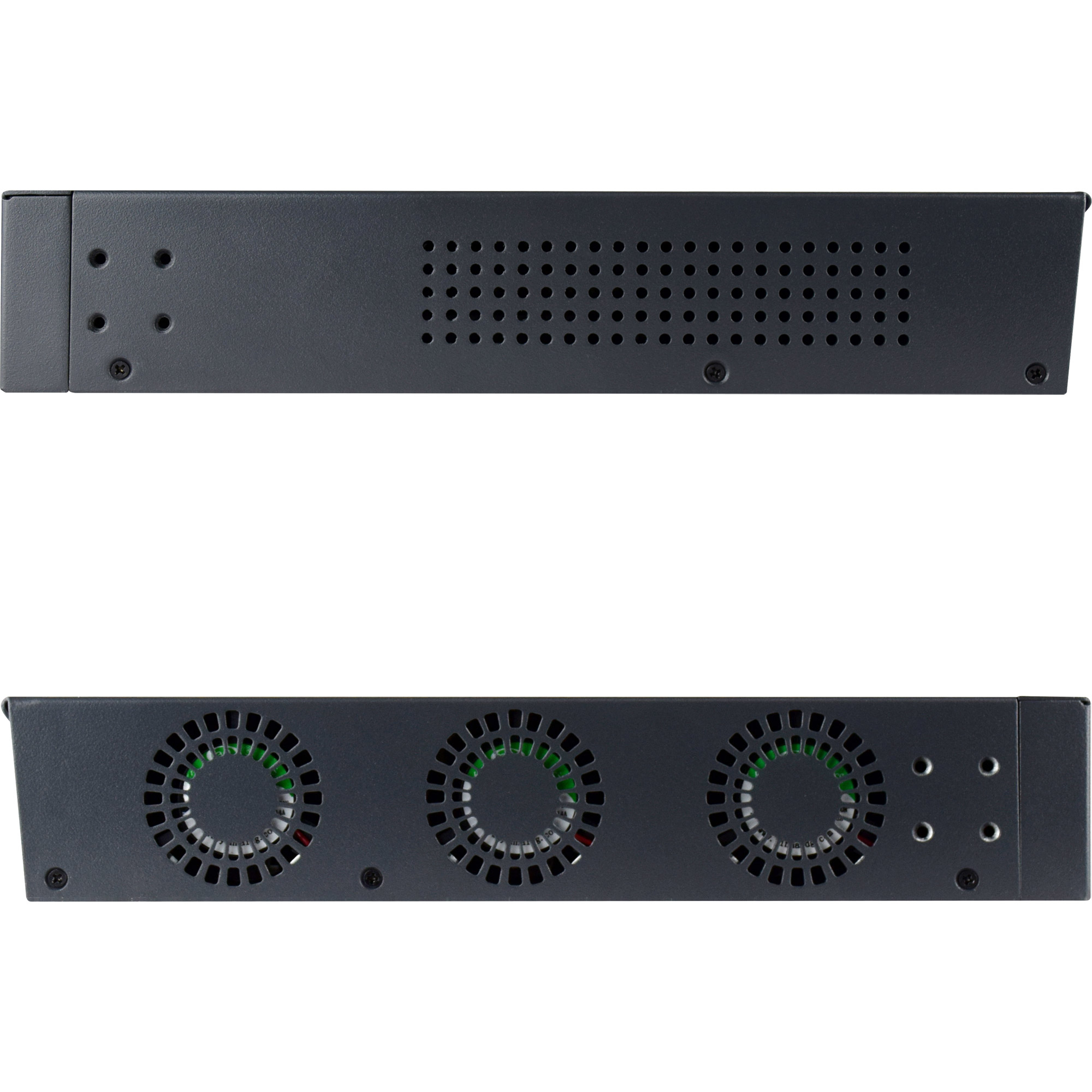

PoE+ Gigabit Network Switch 24 port
1 Gb/s, 2xSFP,19"1U(incl. brackets)
Model 32316PEAN 4043718300686
48 specifications
- Speed1000 Mbit/s
- Type1U
- Weight4.5 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
Overview
- Speed
- 1000 Mbit/s
- Type
- 1U
- Weight
- 4.5 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Brand
- InLine
- Category
- Network Switch
- Model
- 32316P
- Part number
- 32316P
- EAN / UPC
- 4043718300686
- Also known as
- InLine PoE+ Gigabit Network Switch 24 port, 1 Gb/s, 2xSFP,19"1U(incl. brackets)
Specifications
48 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e, Cat6, Cat6a, Cat8.1 |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address auto-learning supported | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Forwarding rate | 26.78 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Transmission method | Store-and-forward |
| Packet buffer memory | 4.1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 330 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 300 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 37.75 x 230 mm |
| Ethernet LAN (RJ-45) ports | 16 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 37.8 mm |
| Height | 230 mm |
| Weight | 4.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 350 mm |
| Package depth | 500 mm |
| Package height | 95 mm |
| Package weight | 3.12 kg |
