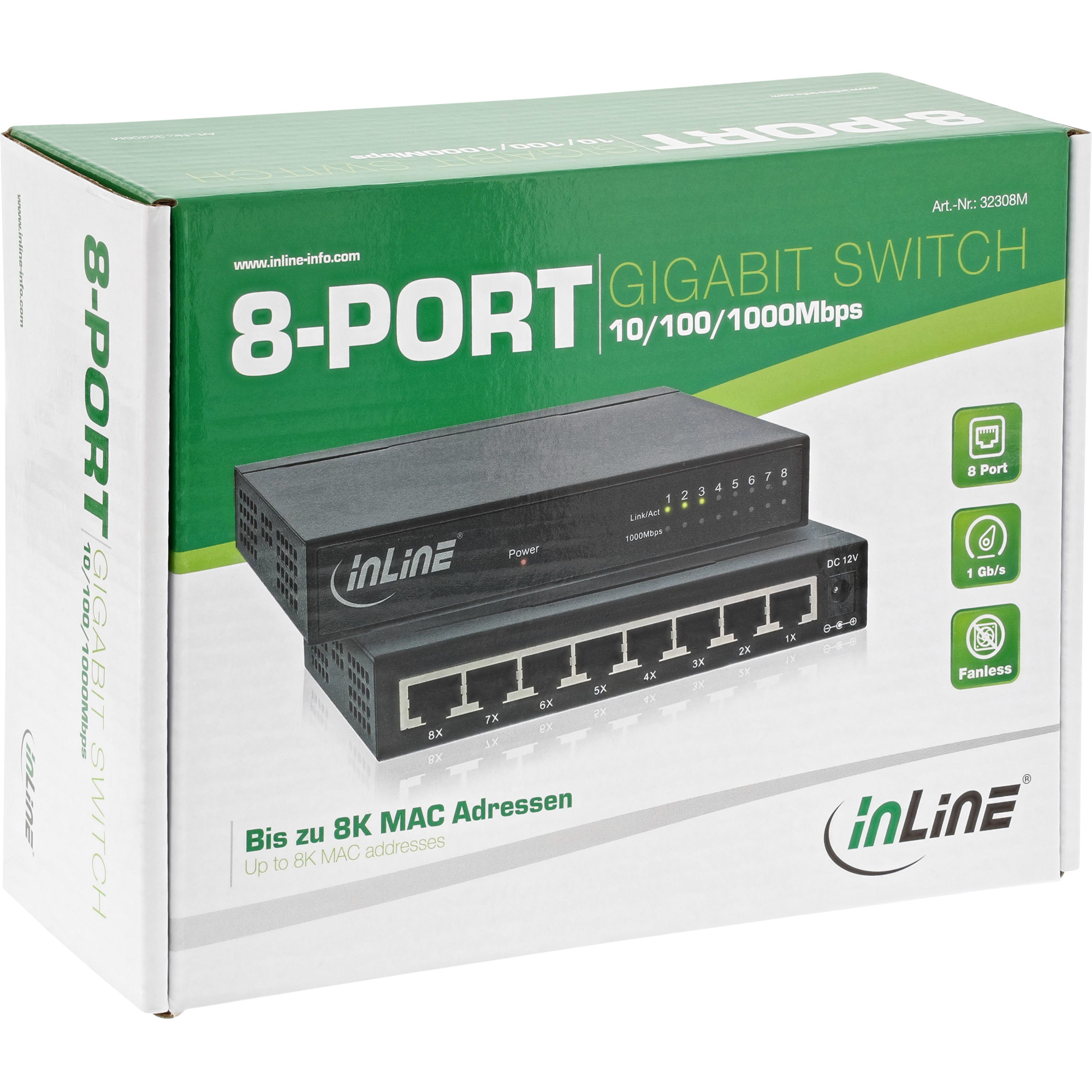

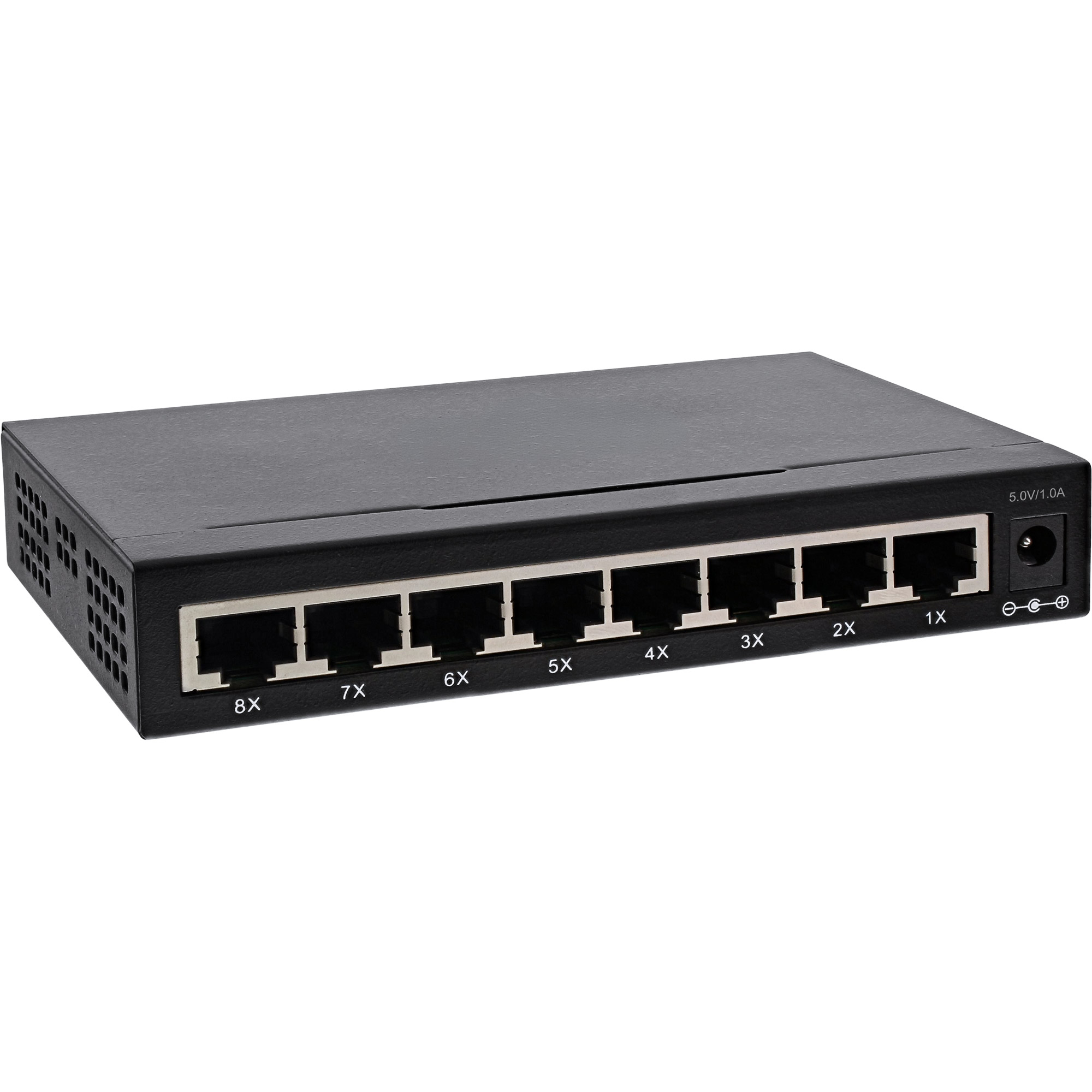

InLine Network Switch 8-Port
1Gb/s, Desktop, Metal, fanless, shielded ports
Model 32308MEAN 4043718257331
36 specifications
- Speed1000 Mbit/s
- Weight2.8 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table1000 entries
Overview
- Speed
- 1000 Mbit/s
- Weight
- 2.8 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 1000 entries
- Brand
- InLine
- Category
- Network Switch
- Model
- 32308M
- Part number
- 32308M
- EAN / UPC
- 4043718257331
- Also known as
- InLine Network Switch 8-Port, 1Gb/s, Desktop, Metal, fanless, shielded ports
Specifications
36 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Forwarding rate | 0.1488 Mpps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | LAN, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| Input current | 0.5 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 145 x 4.09 x 75 mm |
| Ethernet LAN (RJ-45) ports | 8 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 4.09 mm |
| Height | 75 mm |
| Weight | 2.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 190 mm |
| Package height | 140 mm |
| Package weight | 303 g |
