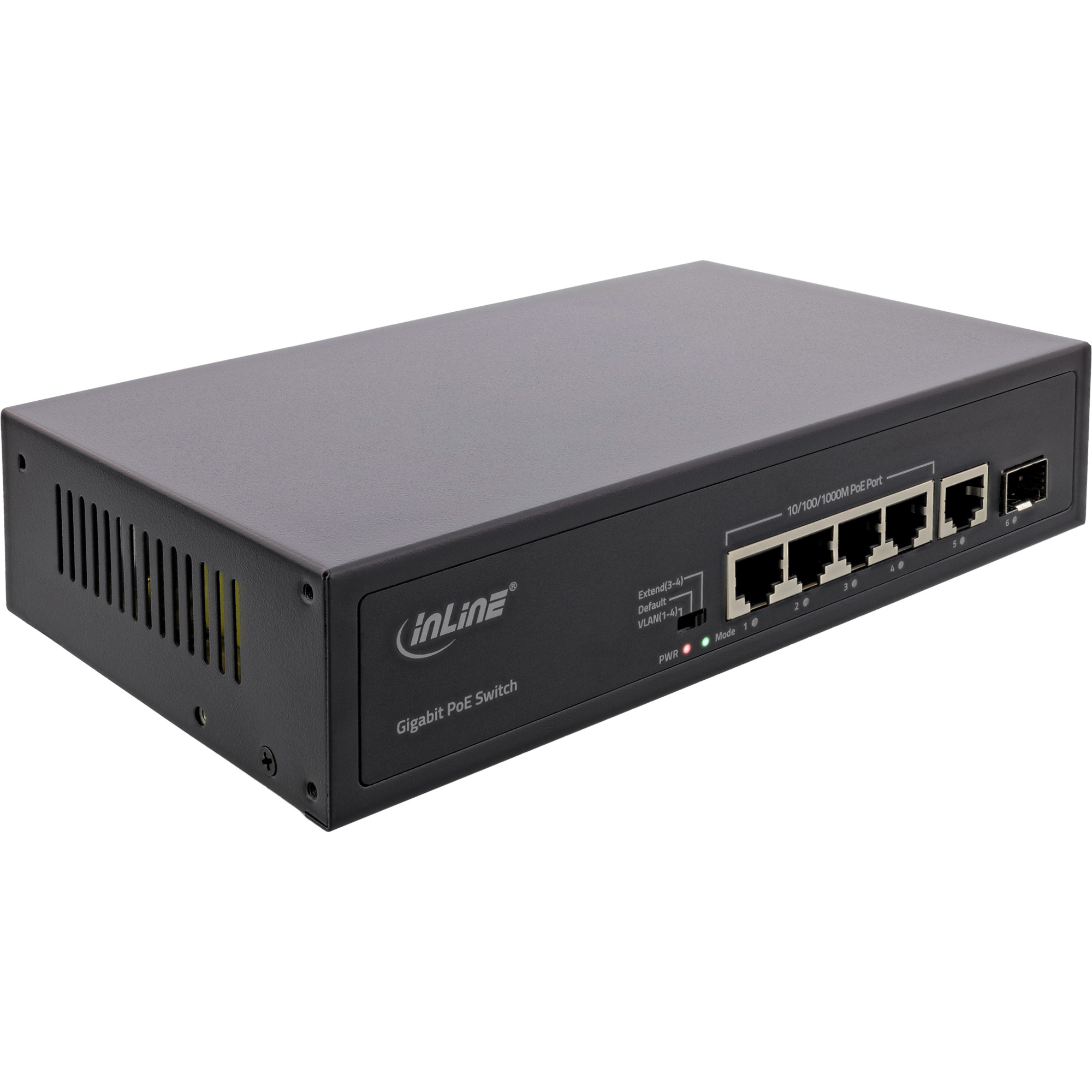

PoE+ Gigabit Network Switch 5 Port (4x PoE+), 1xSFP
1Gb/s, desktop
Model 32305REAN 4043718316380
36 specifications
- Weight4.5 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- AC input voltage100 - 240 V
Overview
- Weight
- 4.5 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- AC input voltage
- 100 - 240 V
- Brand
- InLine
- Category
- Network Switch
- Model
- 32305R
- Part number
- 32305R
- EAN / UPC
- 4043718316380
- Also known as
- InLine PoE+ Gigabit Network Switch 5 Port (4x PoE+), 1xSFP, 1Gb/s, desktop
Specifications
36 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage | 52 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 200 x 9.52 x 120 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 9.52 mm |
| Height | 120 mm |
| Weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 250 mm |
| Package height | 62 mm |
| Package weight | 635 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | cTUVus |
