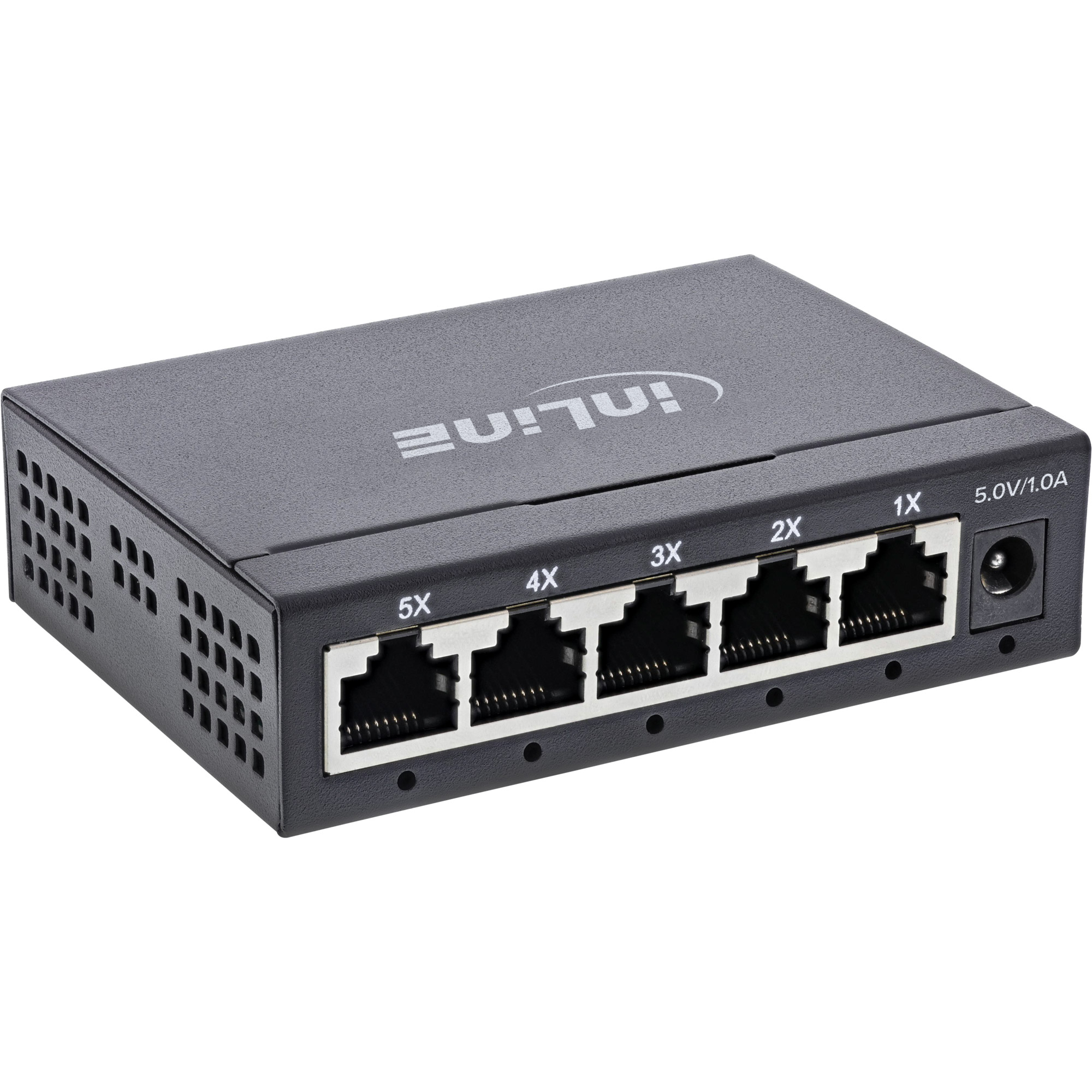

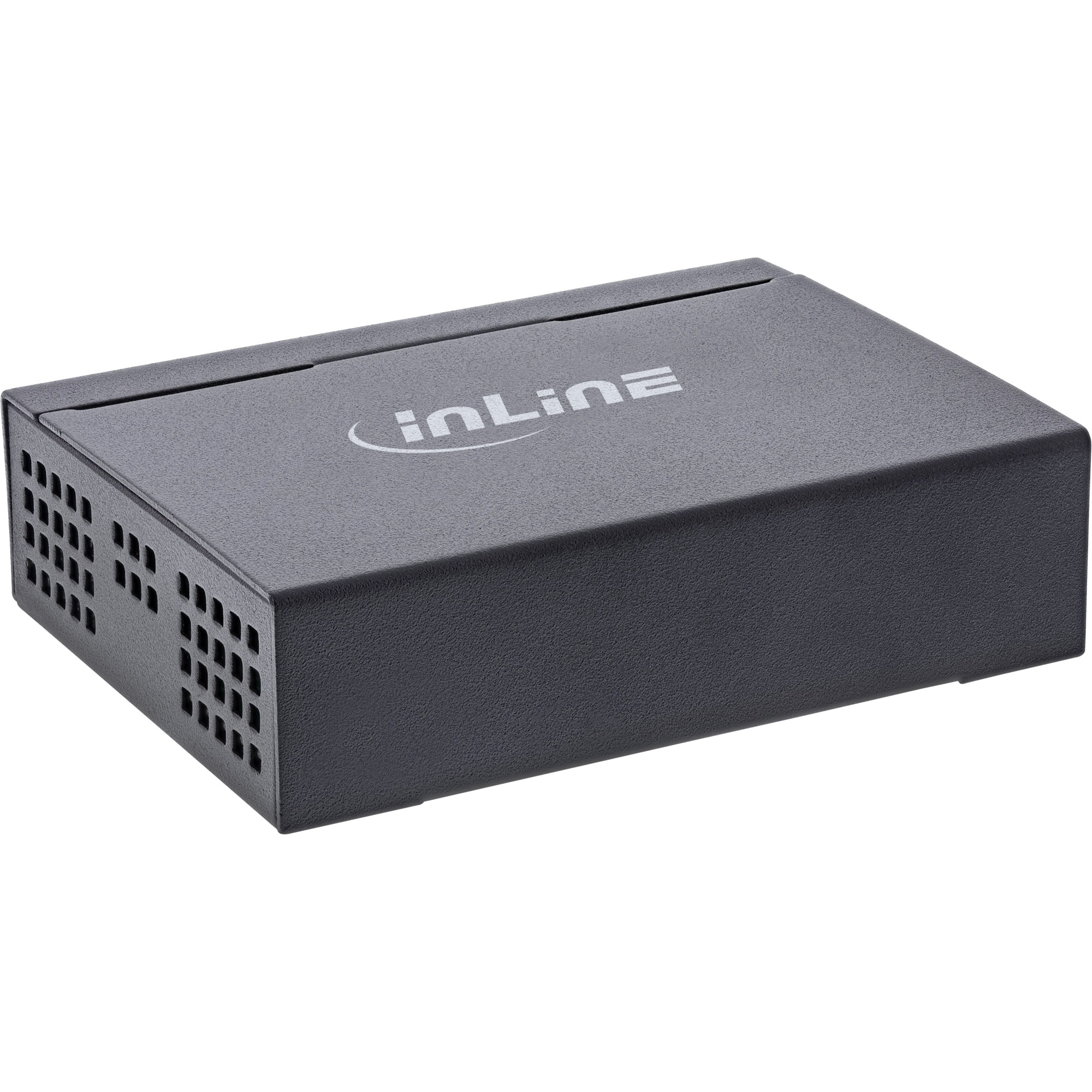

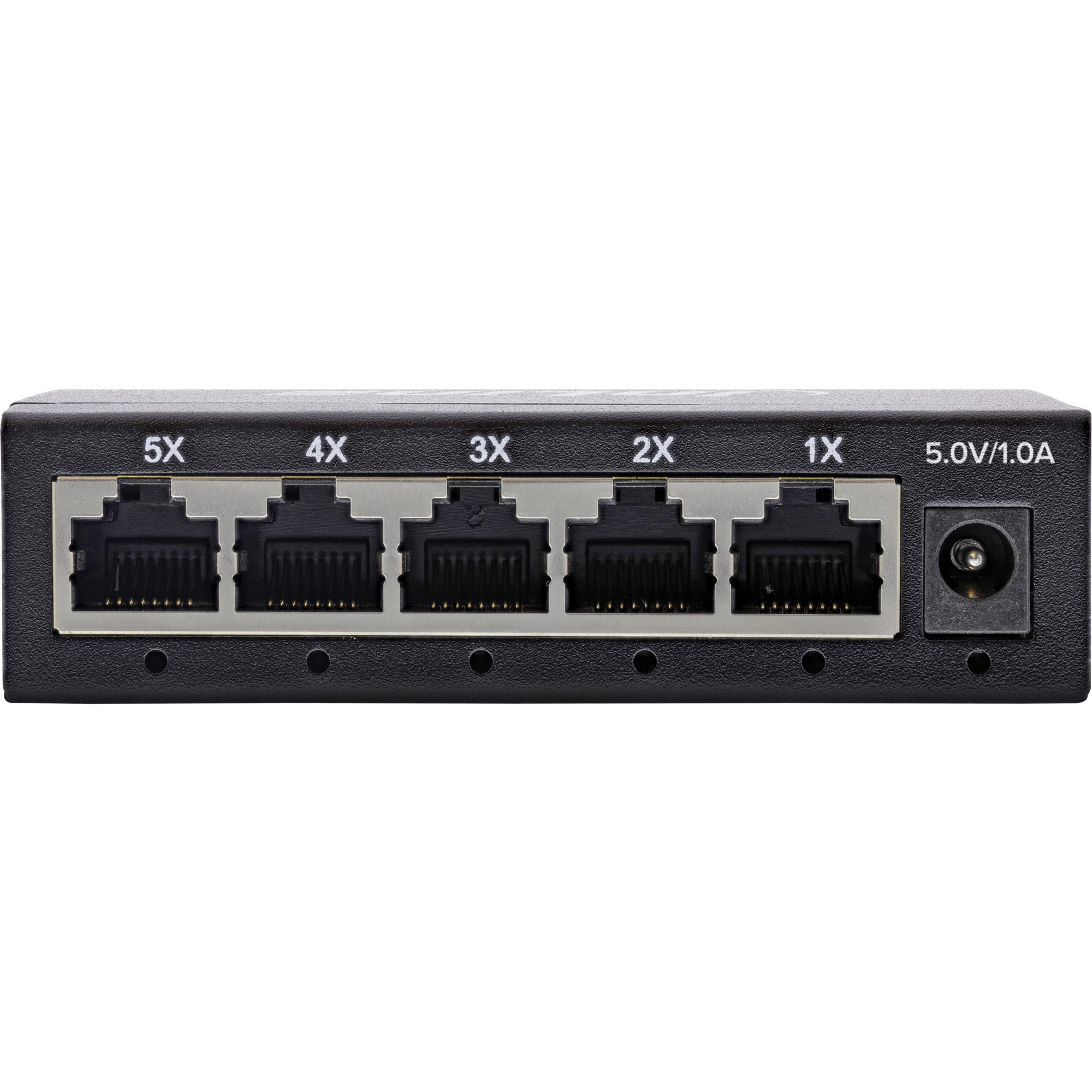

Gigabit network switch 5-port
1Gb/s, desktop, metal housing, fanless
Model 32305OEAN 4043718298099
38 specifications
- Speed1000 Mbit/s
- Weight2.5 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity5
- Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
- MAC address table4000 entries
Overview
- Speed
- 1000 Mbit/s
- Weight
- 2.5 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-T, 1000BASE-T
- MAC address table
- 4000 entries
- Brand
- InLine
- Category
- Network Switch
- Model
- 32305O
- Part number
- 32305O
- EAN / UPC
- 4043718298099
- Also known as
- InLine Gigabit network switch 5-port, 1Gb/s, desktop, metal housing, fanless
Specifications
38 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| Store-and-forward | Yes |
| Transmission method | Store-and-forward |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Link, Power |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 1 A |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 93 x 2.89 x 68 mm |
| Ethernet LAN (RJ-45) ports | 5 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93 mm |
| Depth | 2.89 mm |
| Height | 68 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 110 mm |
| Package depth | 160 mm |
| Package height | 65 mm |
| Package weight | 162 g |
