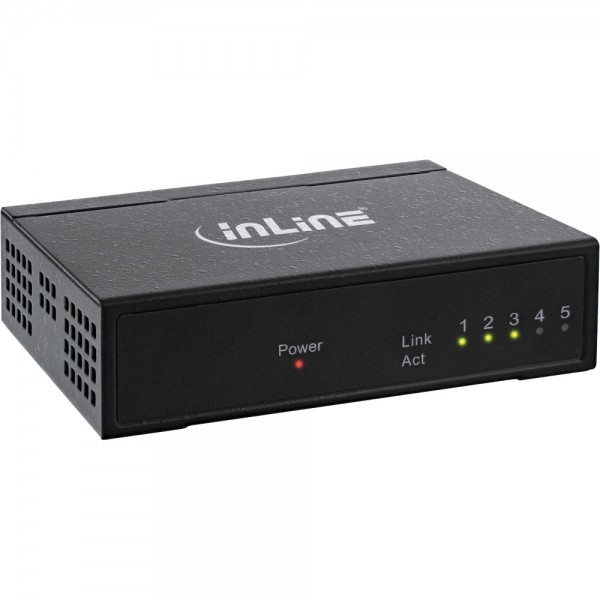

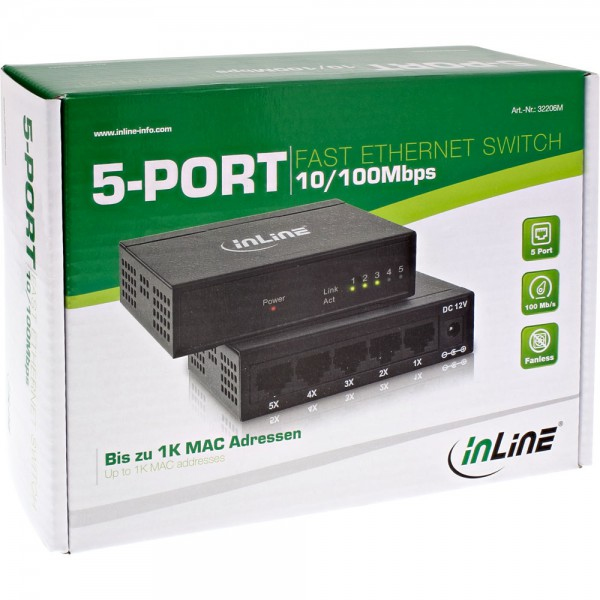

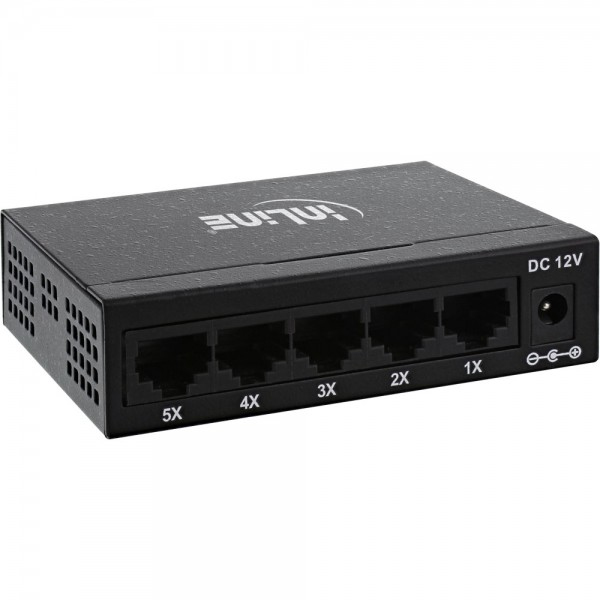

InLine 32206M network switch Fast Ethernet (10/100) Black
Model 32206M
25 specifications
- Weight161 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3, IEEE 802.3u
- MAC address table1000 entries
- Input current0.5 A
Overview
- Weight
- 161 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3, IEEE 802.3u
- MAC address table
- 1000 entries
- Input current
- 0.5 A
- Brand
- InLine
- Category
- Network Switch
- Model
- 32206M
- Part number
- 32206M
- Also known as
- InLine 32206M network switch Fast Ethernet (10/100) Black
Specifications
25 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Input current | 0.5 A |
| Input voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 67 mm |
| Height | 29 mm |
| Weight | 161 g |
What people say
Reviews & ratings
InLine 32206M network switch Fast Ethernet (10/100) Black
No reviews yet
Be the first to tell others how InLine 32206M network switch Fast Ethernet (10/100) Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare InLine 32206M network switch Fast Ethernet (10/100) Black
All network switch comparisons- InLine 32206M network switch Fast Ethernet (10/100) Black vsInLine Gigabit switch 16 portCompare specs
- InLine 32206M network switch Fast Ethernet (10/100) Black vsInLine PoE+ Gigabit Networking Switch 5 Port (4x PoE+),11" (19" brackets incl.)Compare specs

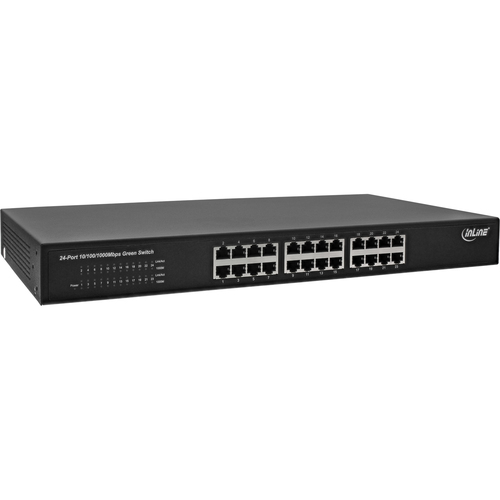

- InLine 32206M network switch Fast Ethernet (10/100) Black vsInLine 24 Port Gigabit Network Switch 10/100/1000 1GBit/sCompare specs
- InLine 32206M network switch Fast Ethernet (10/100) Black vsInLine 32305I network switch BlackCompare specs

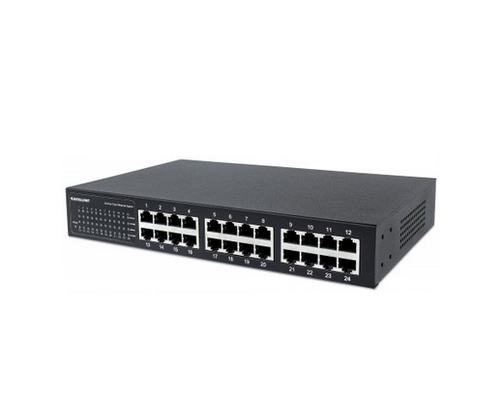

- InLine 32206M network switch Fast Ethernet (10/100) Black vsIntellinet 560924 network switch Unmanaged L2 Fast Ethernet (10/100) 1U BlackCompare specs

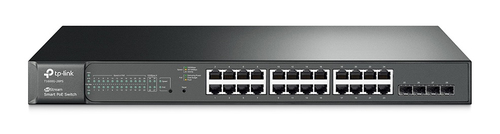

- InLine 32206M network switch Fast Ethernet (10/100) Black vsTP-Link JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP SlotsCompare specs

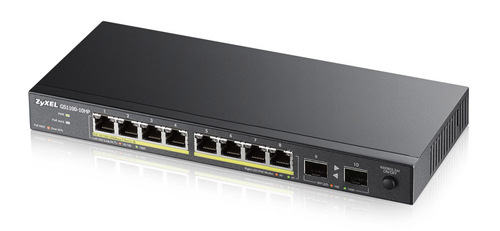

- InLine 32206M network switch Fast Ethernet (10/100) Black vsZyxel GS1100-10HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs

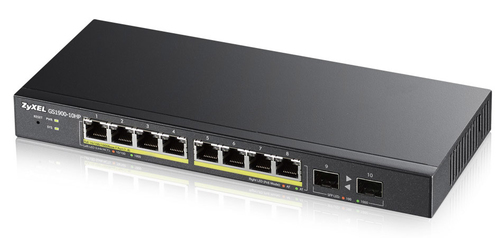

- InLine 32206M network switch Fast Ethernet (10/100) Black vsZyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
