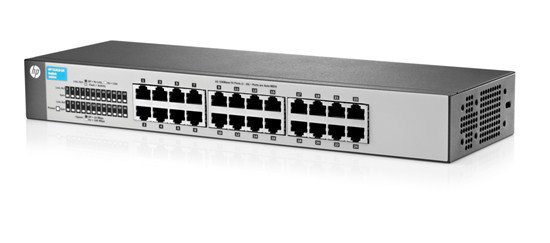

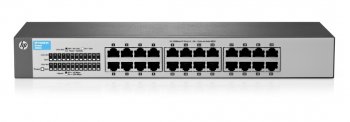

HP V V1410-24 Unmanaged L3 Fast Ethernet (10/100) 1U Grey
Model V1410-24Part no. J9663A#88539763
31 specifications
- Type1U
- Weight1.35 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 1.35 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- HP
- Category
- Network Switch
- Model
- V1410-24
- Part numbers
- J9663A#88539763, J9663A#88539769
- Also known as
- HP V V1410-24 Unmanaged L3 Fast Ethernet (10/100) 1U Grey
Specifications
31 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 4.8 Gbit/s |
| Throughput | 3.5 Mpps |
| Latency (10-100 Mbps) | 11 µs |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Safety | UL 60950-1; CSA 22.2 60950-1; IEC 60950-1:2005; EN 60950-1:2006 + A11:2009 |
| Electromagnetic compatibility | FCC Rules Part 15, Subpart B Class A |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.4 A |
| Power consumption (typical) | 4.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 17 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 336 mm |
| Depth | 168.9 mm |
| Height | 43.9 mm |
| Weight | 1.35 kg |
