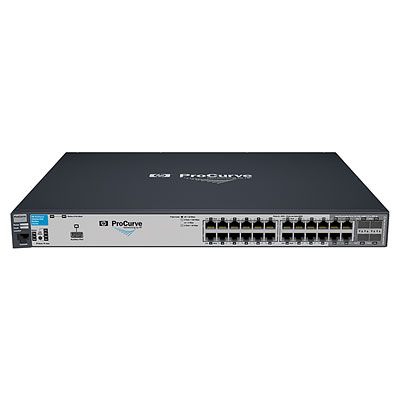

HP ProCurve 2190al-24G
Model ProCurve 2190al-24GPart no. J9145A#*KITS1
57 specifications
- ProcessorARM11
- Memory512 MB
- ConnectivityWired
- Noise51.5 dB
- Type1U
- Weight4.95 kg
Overview
- Processor
- ARM11
- Memory
- 512 MB
- Connectivity
- Wired
- Noise
- 51.5 dB
- Type
- 1U
- Weight
- 4.95 kg
- Brand
- HP
- Category
- Network Switch
- Model
- ProCurve 2190al-24G
- Part number
- J9145A#*KITS1
- Also known as
- HP ProCurve 2190al-24G Unmanaged L2 1U Grey
Specifications
57 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 28 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 2000 |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000/10000 |
| Switching capacity | 128 Gbit/s |
| Throughput | 95 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 6 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM11 |
| Processor frequency | 515 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 4 MB |
| Noise level | 51.5 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Number of power supply units | 1 |
| Input current | 3.1 - 6.1 A |
| Input voltage | 100-127 / 200-240 V |
| Power consumption (typical) | 490 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 2.9 µs |
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 442 x 365.8 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Networking features | 10 Gigabit Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.95 kg |
