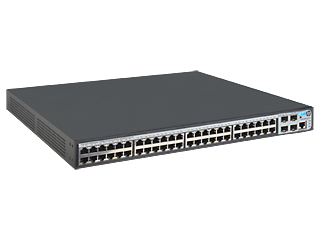

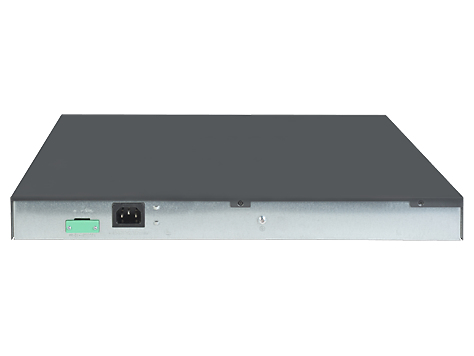

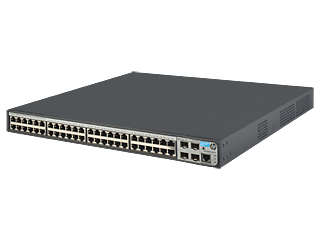

HP OfficeConnect 1920 48G PoE+ (370W)
Model OfficeConnect 1920 48G PoE+ (370W)Part no. JG928AREAN 190017041827
51 specifications
- Memory128 MB
- Type1U
- Weight4.3 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 128 MB
- Type
- 1U
- Weight
- 4.3 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- HP
- Category
- Network Switch
- Model
- OfficeConnect 1920 48G PoE+ (370W)
- Part number
- JG928AR
- EAN / UPC
- 190017041827
- Also known as
- HP OfficeConnect 1920 48G PoE+ (370W) Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
51 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE-FX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 104 Gbit/s |
| Throughput | 77.4 Mpps |
| Latency (10-100 Mbps) | 5 µs |
| Latency (1 Gbps) | 5 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 650 MHz |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 492 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 15 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 4.3 kg |
