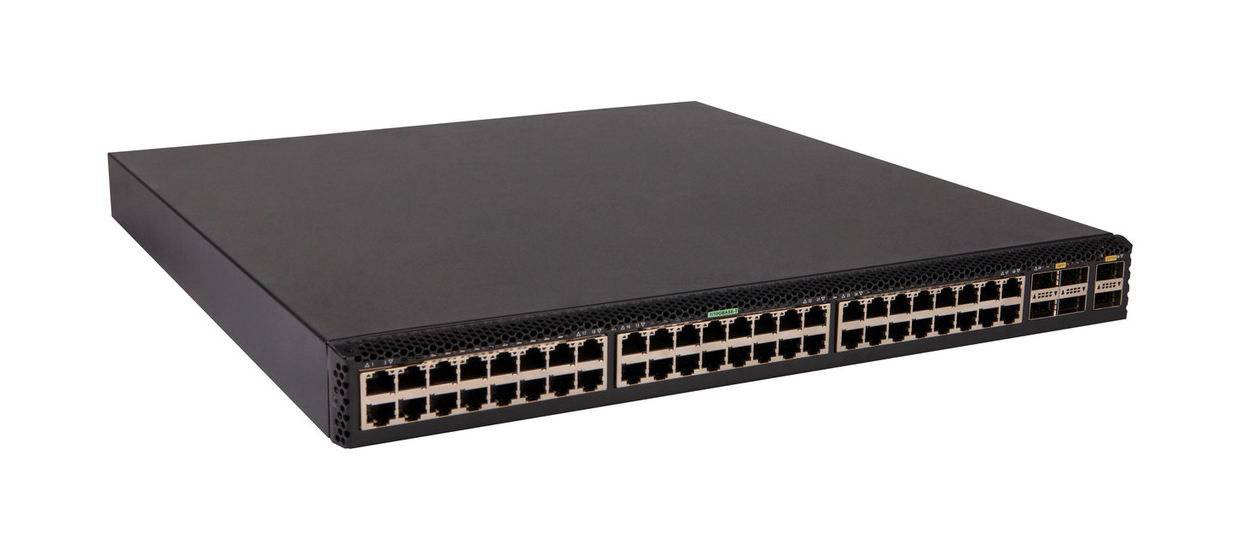

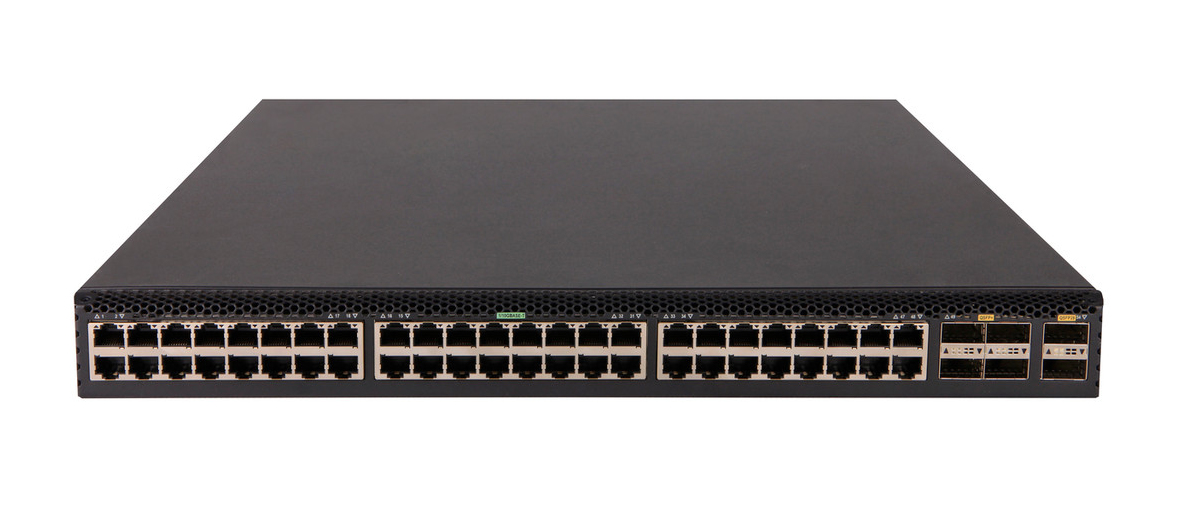

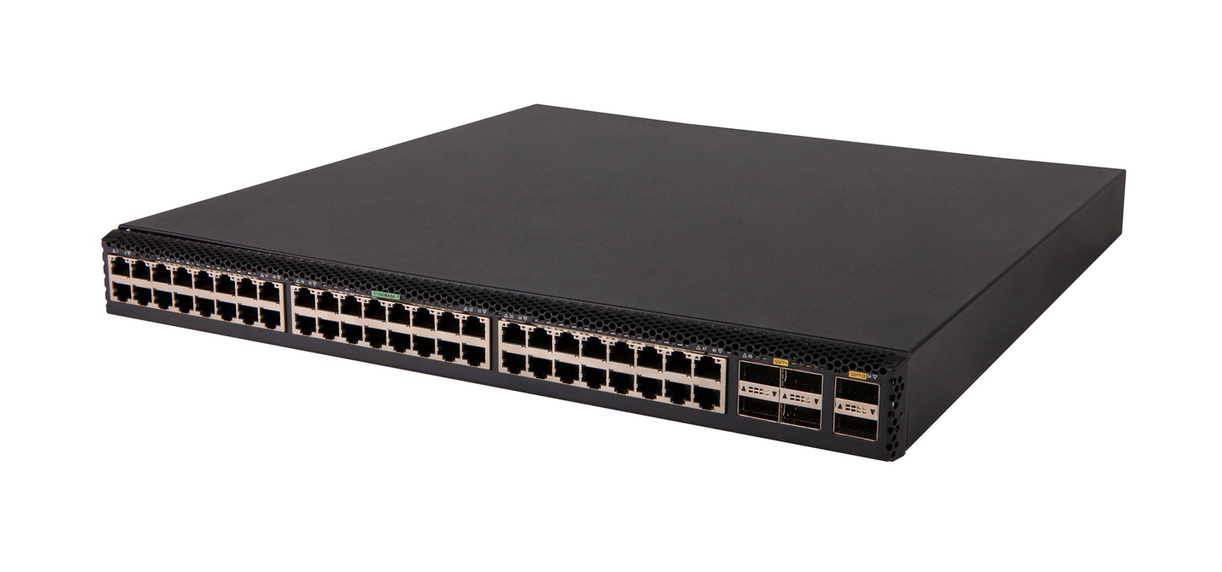

JL586A network switch Managed Gigabit Ethernet (10/100/1000) 1U Black
Model JL586A
37 specifications
- Memory4000 MB
- Type1U
- Weight10.2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 4000 MB
- Type
- 1U
- Weight
- 10.2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- HP
- Category
- Network Switch
- Model
- JL586A
- Part number
- JL586A
- Also known as
- HP JL586A network switch Managed Gigabit Ethernet (10/100/1000) 1U Black
Specifications
37 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 8 |
| Installed SFP+ modules quantity | 6 |
| QSFP28 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 208 entries |
| Switching capacity | 1440 Gbit/s |
| Throughput | 1071 Mpps |
| Latency (10 Gbps) | 2.5 µs |
Security
| Specification | Value |
|---|---|
| Security algorithms | FTPES, SNMP |
Protocols
| Specification | Value |
|---|---|
| IPv4 & IPv6 features | IPv6 Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 5 fan(s) |
Performance
| Specification | Value |
|---|---|
| Virtual stacking (units) | 10 |
| Memory type | SDRAM / Flash |
| Internal memory | 4000 MB |
| Flash memory | 1000 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 108 W |
| Power consumption (max) | 450 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 900 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 10.2 kg |
