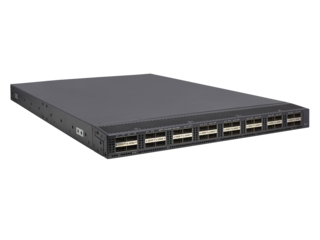

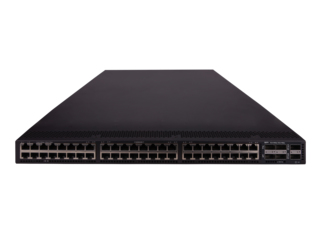

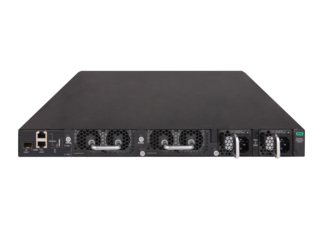

HP FlexFabric 5940 2-slot Chassis with 2 Fans 2 PS Bundle
Model FlexFabric 5940 2-slot Chassis with 2 Fans 2 PS BundlePart no. JH691AABAEAN 190017150123
52 specifications
- Memory4096 MB
- Type1U
- Weight16 kg
- ColourBlack
- Switch typeManaged
- Gigabit Ethernet (copper) ports quantity1
Overview
- Memory
- 4096 MB
- Type
- 1U
- Weight
- 16 kg
- Colour
- Black
- Switch type
- Managed
- Gigabit Ethernet (copper) ports quantity
- 1
- Brand
- HP
- Category
- Network Switch
- Model
- FlexFabric 5940 2-slot Chassis with 2 Fans 2 PS Bundle
- Part number
- JH691AABA
- EAN / UPC
- 190017150123
- Also known as
- HP FlexFabric 5940 2-slot Chassis with 2 Fans 2 PS Bundle Managed L2/L3 1U Black
Specifications
52 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| QSFP+ module slots quantity | 2 |
| Fiber optic connector | QSFP+ |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x |
| 10G support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 40GBASE-LR4, 40GBASE-SR4 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 288000 entries |
| Switching capacity | 1440 Gbit/s |
| Throughput | 1071 Mpps |
| Latency (10 Gbps) | 1 µs |
| Packet buffer memory | 16 MB |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, Telnet, FTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 9 |
| Internal memory | 4096 MB |
| Flash memory | 1024 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 2 |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50 - 60 Hz |
| Input voltage | -40 - -75 V |
| Power consumption (typical) | 105 W |
| Power consumption (max) | 508 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 887 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 460 mm |
| Height | 43.6 mm |
| Weight | 16 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
