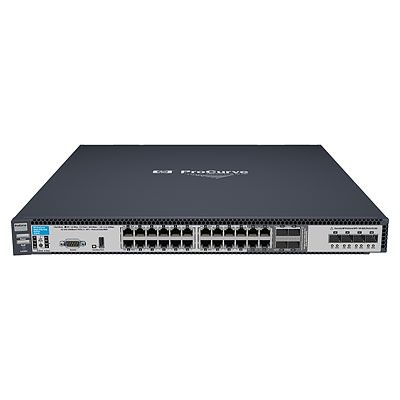

HP E6600-24G-4XG Switch

HP E6600-24G-4XG Switch

Model E6600-24G-4XG SwitchPart no. J9264AEAN 5054484146445

46 specifications
  • ProcessorPowerPC MPC8540
  • Memory256 MB
  • Speed1 Gbit/s
  • ConnectivityWired
  • Weight7.8 kg
  • Switch typeManaged
See all specifications

Overview

Processor
PowerPC MPC8540
Memory
256 MB
Speed
1 Gbit/s
Connectivity
Wired
Weight
7.8 kg
Switch type
Managed
Brand
HP
Model
E6600-24G-4XG Switch
Part number
J9264A
EAN / UPC
5054484146445
Also known as
HP E6600-24G-4XG Switch Managed

Specifications

46 specifications in 13 groups

Management features

Switch typeManaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Console portRS-232

Network

Full duplexYes
Flow control supportYes
Link aggregationYes

Data transmission

MAC address table10000 entries
Throughputup to 75.7 million pps (64-byte packets)
Maximum data transfer rate1 Gbit/s

Security

DHCP featuresDHCP client
IGMP snoopingYes

Protocols

Supported network protocolsRFC 1591 DNS (client); HTML and telnet management; IEEE 802.1ad Q-in-Q (Premium License); IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; I
Supported protocolsRFC 1591 DNS (client); HTML and telnet management RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1724 RIPv2 MIB; RFC 1850 OSPFv2 MIB; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668

Design

StackableYes
SafetyCSA 22.2 No. 60950; EN 60950/IEC 60950; UL 60950
Electromagnetic compatibilityFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A

Performance

Built-in processorYes
Processor modelPowerPC MPC8540
Processor frequency666 MHz
Internal memory256 MB
Flash memory256 MB

Power

Power source1 x J9269A
Input voltage100-120 / 200-240 VAC
Power consumption (typical)204.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Management platformHP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu
Latency1000 Mb Latency: < 3.4 µs (FIFO 64-byte packets); 10 Gbps Latency: < 2.4 µs (FIFO 64-byte packets)
Dimensions (WxDxH)546.1 x 442.5 x 43.2 mm
Connectivity technologyWired
Input frequency50 / 60 Hz
Memory and processor: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, packet buffer size: 36 MB QDR SDRAM total (18 MB for 1-GbE & 10-GbE ports), 256 MB compact flash, 256 MB DDR SDRAM
MountingTelco rack: Mounts in an EIA-standard 19-in. 2-post telco rack or equipment cabinet; horizontal surface mounting only. Rack kit: Rack rails are required for mounting in HP 10000 Series 4-post racks.
Power requirements100 -120 VAC / 200 -240 VAC; 50 /60 Hz. The switch automatically adjusts to any voltage between 100-120 and 200-240 volts and either 50 or 60 Hz
Remote administrationcommand-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
Electromagnetic emissionsFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A.
Electromagnetic immunityEN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
I/O ports20 auto-sensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 4 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port (IEEE 8
Management product nameHP ProCurve Manager Plus; HP ProCurve Manager (included)
Operating altitude (imperial)up to 10000 ft.
Power supply slots open2
Switch fabric speed105.6 Gbps
Weight (imperial)17.2 lb.

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)41 - 104 °F

Weight & dimensions

Weight7.8 kg
