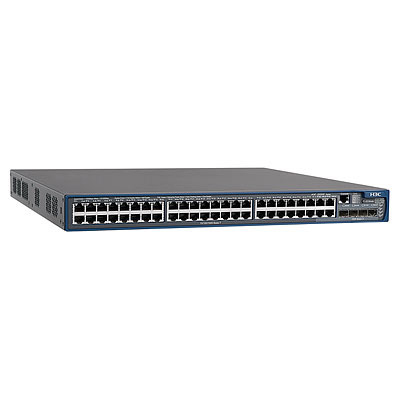

HP E5500-48-PoE Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey
Model E5500-48-PoEPart no. JE107A#ABA?LA
37 specifications
- ProcessorBroadcom BCM5836
- Memory64 MB
- Type1U
- Weight6.31 kg
- ColourGrey
- Switch typeManaged
Overview
- Processor
- Broadcom BCM5836
- Memory
- 64 MB
- Type
- 1U
- Weight
- 6.31 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- HP
- Category
- Network Switch
- Model
- E5500-48-PoE
- Part number
- JE107A#ABA?LA
- Also known as
- HP E5500-48-PoE Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey
Specifications
37 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 17.6 Gbit/s |
| Throughput | 11.8 Mpps |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Broadcom BCM5836 |
| Memory type | SDRAM |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439.4 mm |
| Depth | 426.7 mm |
| Height | 43.2 mm |
| Weight | 6.31 kg |
