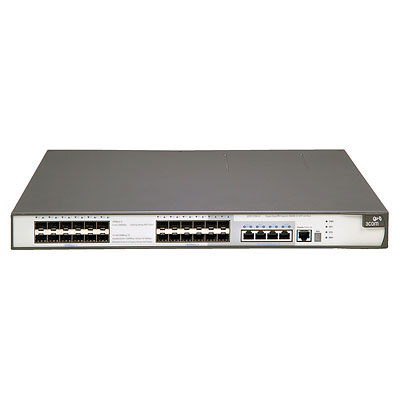

HP E5500-24G-PoE Switch
Model E5500-24G-PoE SwitchPart no. JE092A-IM
41 specifications
- ProcessorPowerPC MPC8245
- Memory64 MB
- Type1U
- Weight7.6 kg
- ColourGrey
- Switch typeManaged
Overview
- Processor
- PowerPC MPC8245
- Memory
- 64 MB
- Type
- 1U
- Weight
- 7.6 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- HP
- Category
- Network Switch
- Model
- E5500-24G-PoE Switch
- Part numbers
- JE092A-IM, JE092AR#ABB, JE092AABA, JE092AR_RENEW
- Also known as
- HP E5500-24G-PoE Switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
41 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| 10G support | Yes |
| Routing entries | 2000 |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 184 Gbit/s |
| Throughput | 136.9 Mpps |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC MPC8245 |
| Processor frequency | 400 MHz |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 449.6 mm |
| Depth | 442 mm |
| Height | 43.2 mm |
| Weight | 7.6 kg |
