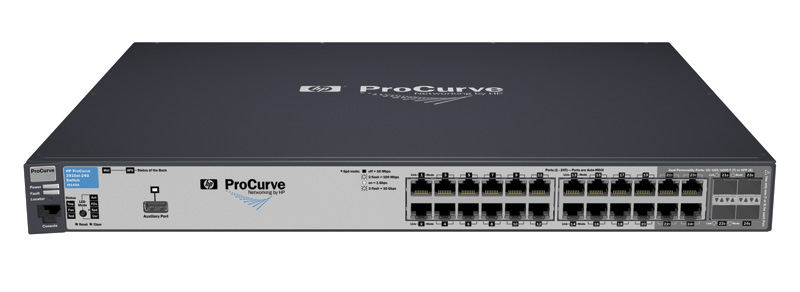

HP E2910-24G-PoE+ al Switch + Care Pack
Model E2910-24G-PoE+ al Switch + Care PackPart no. J9146A#ABB-BNDL
35 specifications
- ProcessorARM11
- Memory512 MB
- Speed1 Gbit/s
- Type1U
- Weight5.6 kg
- Switch typeManaged
Overview
- Processor
- ARM11
- Memory
- 512 MB
- Speed
- 1 Gbit/s
- Type
- 1U
- Weight
- 5.6 kg
- Switch type
- Managed
- Brand
- HP
- Category
- Network Switch
- Model
- E2910-24G-PoE+ al Switch + Care Pack
- Part number
- J9146A#ABB-BNDL
- Also known as
- HP ProCurve E2910-24G-PoE+ al Switch + Care Pack Managed Power over Ethernet (PoE) 1U
Specifications
35 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | Yes |
| Full duplex | Yes |
| Routing entries | 2000 |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Throughput | 95 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Safety | EN 60950/IEC 60950; CAN/CSA 22.2 No. 60950; EN 60825; UL 60950 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM11 |
| Processor frequency | 515 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 4 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3.1 - 6.1 A |
| Power consumption (typical) | 490 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Latency | 1000 Mb: < 2.9 µs (FIFO ); 10 Gbps: < 1.3 µs (FIFO ) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 365.8 mm |
| Depth | 442 mm |
| Height | 43.9 mm |
| Weight | 5.6 kg |
