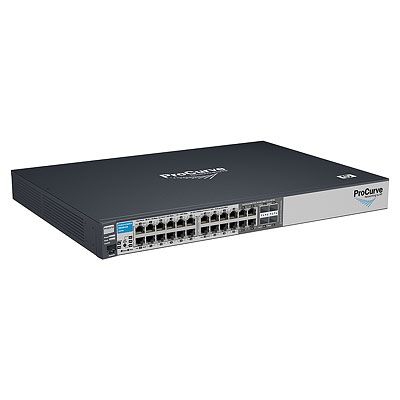

HP E2510-24G Managed L2
Model E2510-24GPart no. J9279A#BUN
62 specifications
- ProcessorMIPS
- Memory64 MB
- Speed1 Gbit/s
- ConnectivityWired
- Noise40.3 dB
- Weight3.27 kg
Overview
- Processor
- MIPS
- Memory
- 64 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 40.3 dB
- Weight
- 3.27 kg
- Brand
- HP
- Category
- Network Switch
- Model
- E2510-24G
- Part number
- J9279A#BUN
- Also known as
- HP E2510-24G Managed L2
Specifications
62 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | MIB II, Bridge MIB, SNMP MIB II, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 48 Gbit/s |
| Throughput | 35.7 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.75 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv3, SNMPv1/v2c/v3 |
| Data link protocols | LLDP |
| Supported network protocols | HTML, Telnet, UDP, TFTP, ICMP, TCP, ARP, BOOTP, SNTPv4 |
Design
| Specification | Value |
|---|---|
| Safety | cUL, UL, EC, EN |
| Electromagnetic compatibility | FCC, VCCI, EN, IEC/EN |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | MIPS |
| Processor frequency | 264 MHz |
| Memory type | SDRAM |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Noise level | 40.3 dB |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 30 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 5.6µs |
| Dimensions (WxDxH) | 322.6 x 442 x 43.2 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Mounting | EIA |
| Networking features | Gigabit Ethernet |
| Wi-Fi | No |
| Dimensions (W x D x H) (imperial) | 442 x 322.6 x 43.2 mm (17.4 x 12.7 x 1.7") |
| Weight (imperial) | 3.27 kg (7.21 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 113 °F |
| Heat dissipation | 164 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.27 kg |
