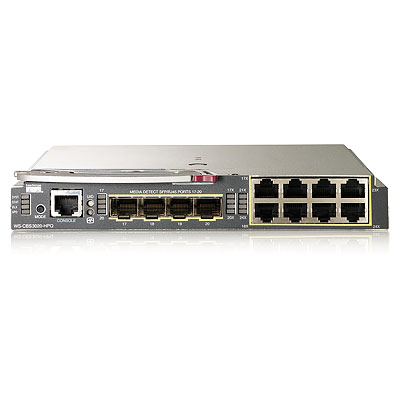

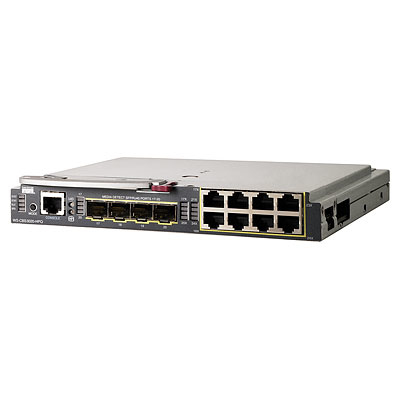

HP Catalyst Blade Switch 3020
Model Catalyst Blade Switch 3020Part no. 410916R-B21
21 specifications
- Memory128 MB
- Speed1 Gbit/s
- Weight1.27 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Weight
- 1.27 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- HP
- Category
- Network Switch
- Model
- Catalyst Blade Switch 3020
- Part numbers
- 410916R-B21, 410916-B21-OL
- Also known as
- HP BladeSystem Catalyst Blade Switch 3020 Managed
Specifications
21 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Maximum data transfer rate | 1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CiscoWorks; SNMP v1, v2c, & v3; Telnet; CLI |
| Supported network protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Compatible products | HP ProLiant Servers HP ProLiant BL2x220c G7 HP ProLiant BL2x220c G5 HP ProLiant BL260c G5 HP ProLiant BL280c G6 HP ProLiant BL420c Gen8 HP ProLiant 460c Gen8 HP ProLiant BL460c G7 HP ProLiant BL460c G6 HP ProLiant BL460c G5 HP ProLiant BL460c HP ProLiant BL465c Gen8 HP ProLiant BL465c G7 HP ProLiant |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92.8 mm |
| Depth | 267.7 mm |
| Height | 27.9 mm |
| Weight | 1.27 kg |
