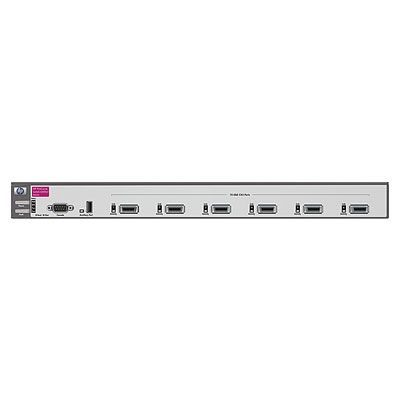

HP 6410-6XG cl
Model 6410-6XG clPart no. J8474-69101
40 specifications
- ProcessorPowerPC MPC8245
- Memory128 MB
- Type1U
- Weight6.15 kg
- ColourGrey
- Switch typeManaged
Overview
- Processor
- PowerPC MPC8245
- Memory
- 128 MB
- Type
- 1U
- Weight
- 6.15 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- HP
- Category
- Network Switch
- Model
- 6410-6XG cl
- Part numbers
- J8474-69101, J8474AABA, J8474A#ABA?LA
- Also known as
- HP 6410-6XG cl Managed L3 1U Grey
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Installed SFP modules quantity | 6 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak |
| 10G support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 160 Gbit/s |
| Throughput | 119 Mpps |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC MPC8245 |
| Processor frequency | 266 MHz |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 120 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Heat dissipation | 383 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 429.3 mm |
| Depth | 442 mm |
| Height | 43.2 mm |
| Weight | 6.15 kg |
