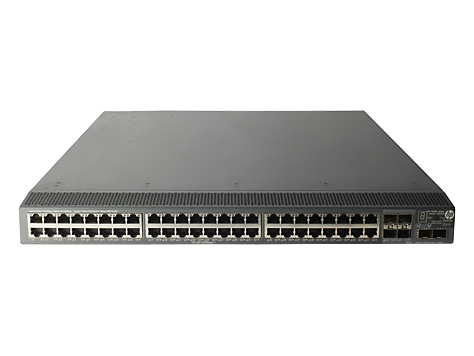

HP A 5800AF-48G Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Model 5800AF-48GPart no. JG225A#ABA?LA
46 specifications
- Memory1024 MB
- Type1U
- Weight10 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 1024 MB
- Type
- 1U
- Weight
- 10 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- HP
- Category
- Network Switch
- Model
- 5800AF-48G
- Part numbers
- JG225A#ABA?LA, JG225A?LA
- Also known as
- HP A 5800AF-48G Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Specifications
46 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 6 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 16000 |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 216 Gbit/s |
| Throughput | 161 Mpps |
| Packet buffer memory | 8 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 426 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439.9 mm |
| Depth | 659.9 mm |
| Height | 43.7 mm |
| Weight | 10 kg |
