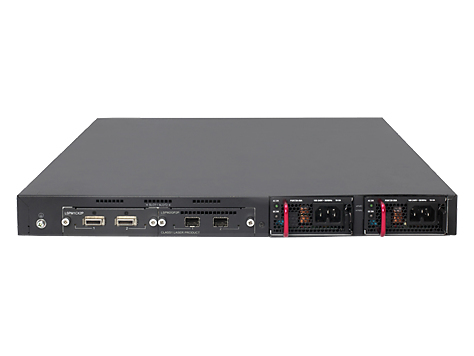

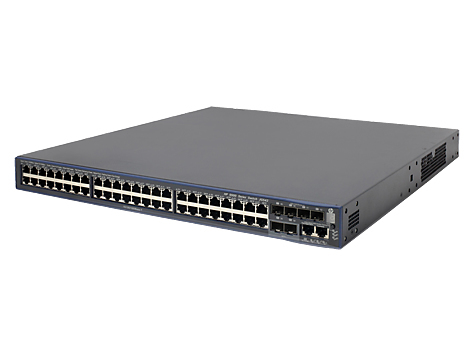

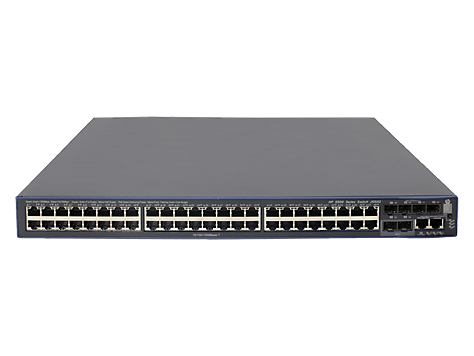

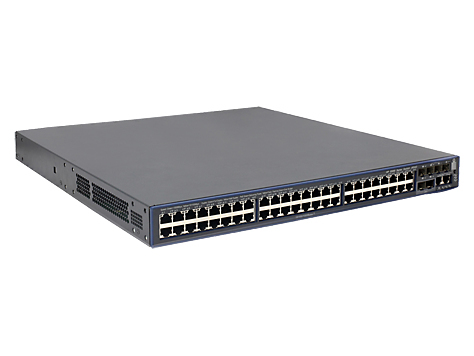

HP 5500-48G-PoE+-4SFP HI Switch w/2 Interface Slots
Model 5500-48G-PoE+-4SFP HI Switch w/2 Interface SlotsPart no. JG542A?LA
43 specifications
- Memory1024 MB
- Type1U
- Weight10.5 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 1024 MB
- Type
- 1U
- Weight
- 10.5 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- HP
- Category
- Network Switch
- Model
- 5500-48G-PoE+-4SFP HI Switch w/2 Interface Slots
- Part numbers
- JG542A?LA, JG542AR - RENEW
- Also known as
- HP 5500-48G-PoE+-4SFP HI Switch w/2 Interface Slots Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
43 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| 10G support | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 224 Gbit/s |
| Throughput | 166.6 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 6 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 9 |
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 195 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 1440 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439.9 mm |
| Depth | 460 mm |
| Height | 43.7 mm |
| Weight | 10.5 kg |
