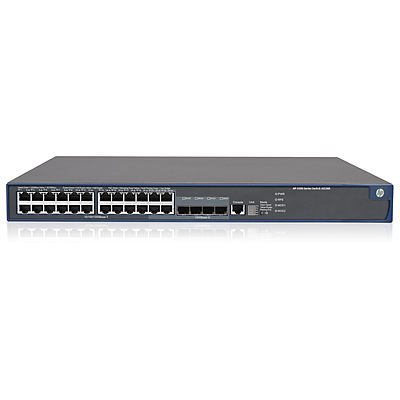

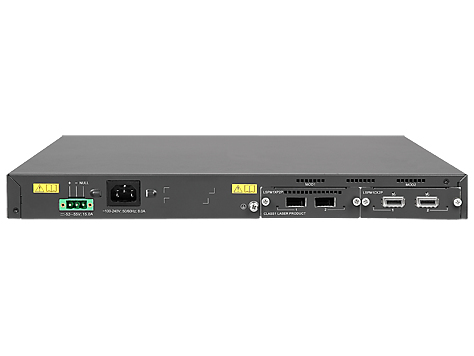

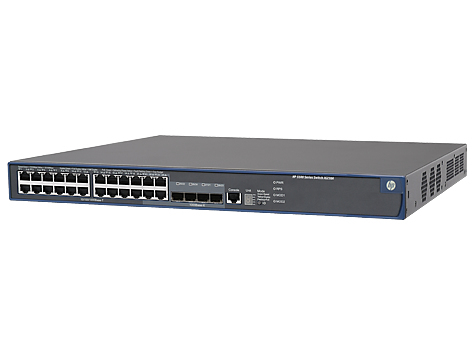

HP 5500-24G-PoE+ SI
Model 5500-24G-PoE+ SIPart no. JG238AR
38 specifications
- Memory128 MB
- Type1U
- Weight5.99 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 128 MB
- Type
- 1U
- Weight
- 5.99 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- HP
- Category
- Network Switch
- Model
- 5500-24G-PoE+ SI
- Part numbers
- JG238AR, JG238AABA
- Also known as
- HP ProCurve 5500-24G-PoE+ SI Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
38 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 144 Gbit/s |
| Throughput | 107.2 Mpps |
| Latency (1 Gbps) | 3.2 µs |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 455 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 290 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439.9 mm |
| Depth | 420.1 mm |
| Height | 43.7 mm |
| Weight | 5.99 kg |
