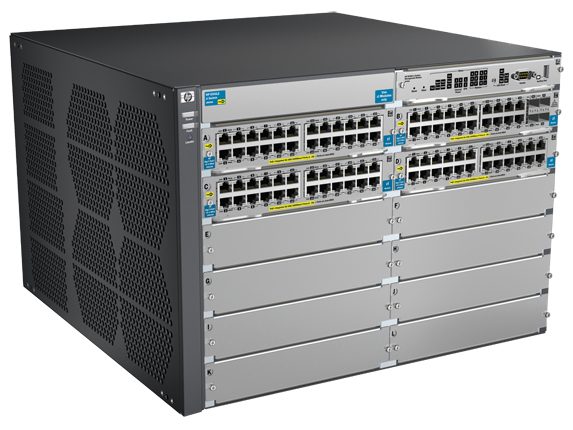

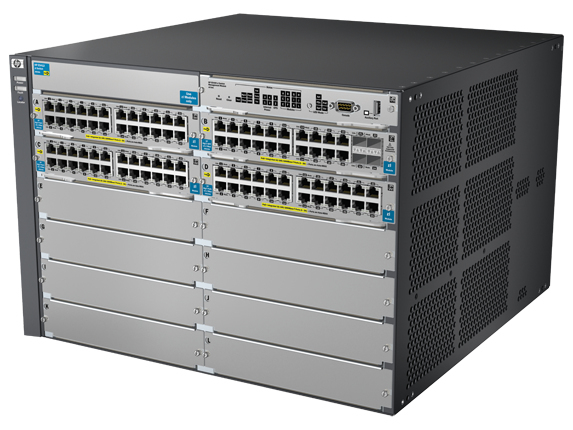

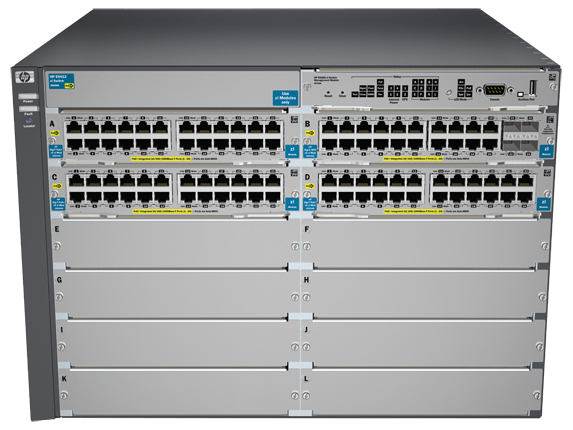

HP 5412-92G-PoE+-4G v2 zl

HP 5412-92G-PoE+-4G v2 zl

Model 5412-92G-PoE+-4G v2 zlPart no. J9540AREAN 888182879177

45 specifications
  • Memory256 MB
  • Type7U
  • Weight34 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity92
See all specifications

Overview

Memory
256 MB
Type
7U
Weight
34 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
92
Brand
HP
Model
5412-92G-PoE+-4G v2 zl
Part numbers
J9540AR, J9540AABA, J9540A#ABA?LA
EAN / UPC
888182879177
Also known as
HP ProCurve 5412-92G-PoE+-4G v2 zl Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 7U Grey

Specifications

45 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity92
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G supportYes
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Full duplexYes
IP routingYes
Auto MDI/MDI-XYes
Auto-sensingYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table64000 entries
Switching capacity758.4 Gbit/s
Throughput564.2 Mpps
Latency (1 Gbps)3.7 µs
Latency (10 Gbps)2.1 µs

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor7U
Product colourGrey

Performance

Built-in processorYes
Memory typeDDR-SDRAM
Internal memory256 MB
Flash memory4 MB

Power

Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)312 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 55 °C
Heat dissipation4900 BTU/h

Weight & dimensions

Width444.5 mm
Depth450.9 mm
Height307.3 mm
Weight34 kg
