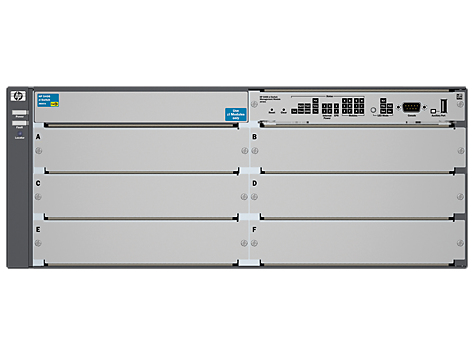

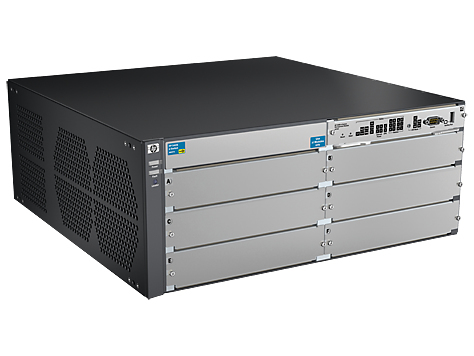

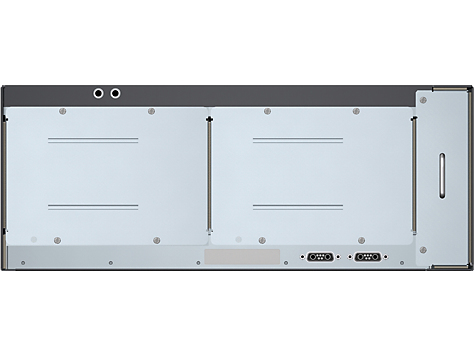

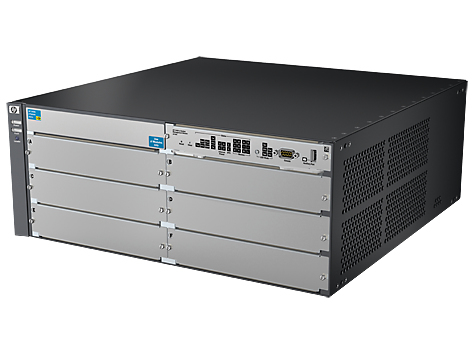

HP 5406 zl
Model 5406 zlPart no. J9642AZEAN 886111567669
37 specifications
- Memory256 MB
- Type4U
- Weight10.7 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 256 MB
- Type
- 4U
- Weight
- 10.7 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- HP
- Category
- Network Switch
- Model
- 5406 zl
- Part numbers
- J9642AZ, J9642A#ABA?LA, J9642A?LA
- EAN / UPC
- 886111567669, 8861115676694
- Also known as
- HP ProCurve 5406 zl Managed L3 10G Ethernet (100/1000/10000) 4U Grey
Specifications
37 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 64000 entries |
| Switching capacity | 379.2 Gbit/s |
| Throughput | 282.1 Mpps |
| Latency (1 Gbps) | 3.7 µs |
| Latency (10 Gbps) | 2.1 µs |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 4U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 4 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 2450 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444.5 mm |
| Depth | 450.9 mm |
| Height | 175.3 mm |
| Weight | 10.7 kg |
What people say
Reviews & ratings
HP 5406 zl
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP 5406 zl
All network switch comparisons- HP 5406 zl vsHP 5120-24G-PoE+ EICompare specs
- HP 5406 zl vsHP 1405-5G v2Compare specs
- HP 5406 zl vsHP 1910-8G-PoE+ (180W)Compare specs
- HP 5406 zl vsHP 2920-48G Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs
- HP 5406 zl vsStarTech.com 5 Port Unmanaged Industrial Gigabit PoE Switch with 4 Power over Ethernet portsCompare specs

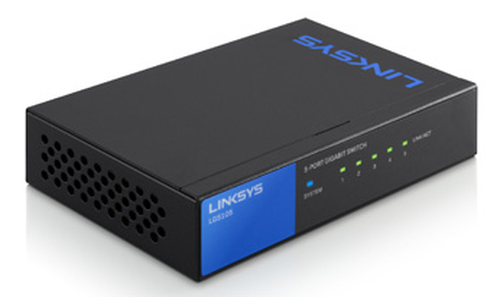

- HP 5406 zl vsLinksys LGS105 network switch Gigabit Ethernet (10/100/1000) BlackCompare specs
