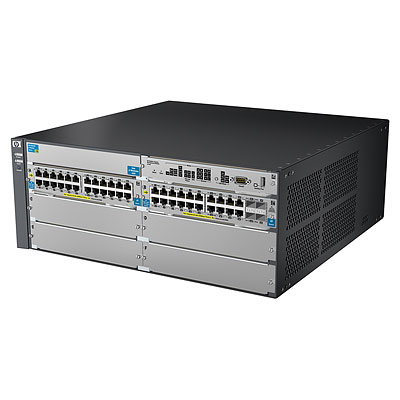

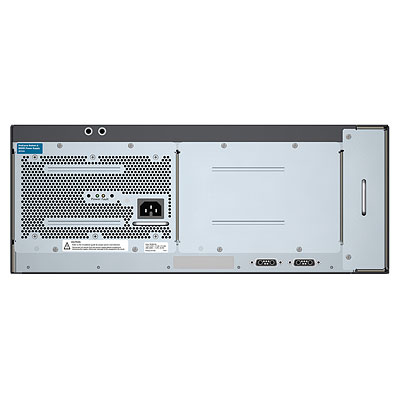

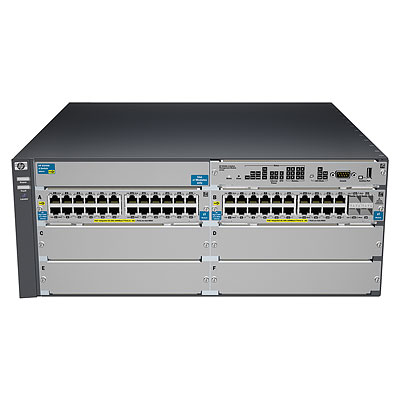

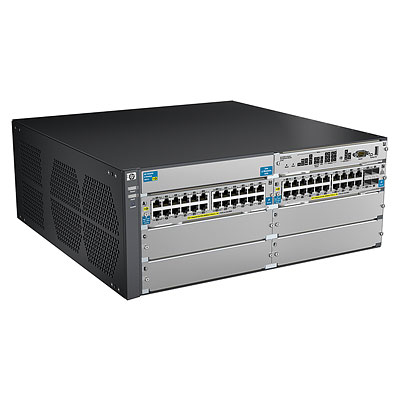

HP 5406-44G-PoE+-4G-SFP v2 zl

HP 5406-44G-PoE+-4G-SFP v2 zl

Model 5406-44G-PoE+-4G-SFP v2 zlPart no. J9539AR#ABBEAN 8861115164078

44 specifications
  • Memory256 MB
  • Type4U
  • Weight20.7 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity44
See all specifications

Overview

Memory
256 MB
Type
4U
Weight
20.7 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
44
Brand
HP
Model
5406-44G-PoE+-4G-SFP v2 zl
Part numbers
J9539AR#ABB, J9539AZ, J9539AABA, J9539A#ABA?LA, J9539AR
EAN / UPC
8861115164078, 885632000006
Also known as
HP ProCurve 5406-44G-PoE+-4G-SFP v2 zl Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Grey

Specifications

44 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity44
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G supportYes
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Full duplexYes
IP routingYes
Auto MDI/MDI-XYes
Auto-sensingYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table64000 entries
Switching capacity379.2 Gbit/s
Throughput282.1 Mpps
Latency (1 Gbps)3.7 µs
Latency (10 Gbps)2.1 µs

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factor4U
Product colourGrey

Performance

Built-in processorYes
Memory typeDDR-SDRAM
Internal memory256 MB
Flash memory4 MB

Power

Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)215 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 55 °C
Heat dissipation2450 BTU/h

Weight & dimensions

Width444.5 mm
Depth450.9 mm
Height175.3 mm
Weight20.7 kg
