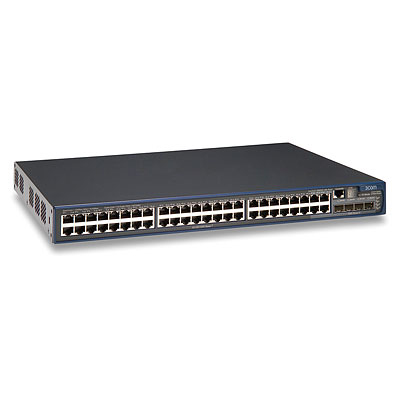

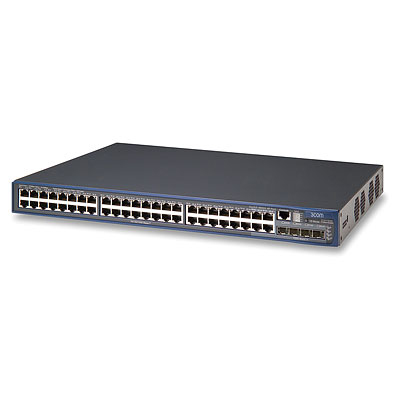

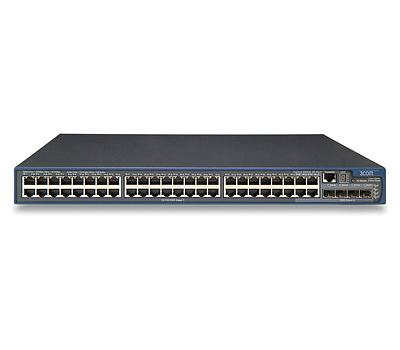

HP 4800-48G Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Model 4800-48GPart no. JD010AABA
43 specifications
- ProcessorPowerPC MPC8349
- Memory256 MB
- Type1U
- Weight4.49 kg
- ColourBlack
- Switch typeManaged
Overview
- Processor
- PowerPC MPC8349
- Memory
- 256 MB
- Type
- 1U
- Weight
- 4.49 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- HP
- Category
- Network Switch
- Model
- 4800-48G
- Part numbers
- JD010AABA, JD010A#ABA?LA
- Also known as
- HP 4800-48G Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
43 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 12000 entries |
| Switching capacity | 192 Gbit/s |
| Throughput | 142.9 Mpps |
| Latency (10-100 Mbps) | 10 µs |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC MPC8349 |
| Processor frequency | 533 MHz |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 299.7 mm |
| Height | 43.2 mm |
| Weight | 4.49 kg |
