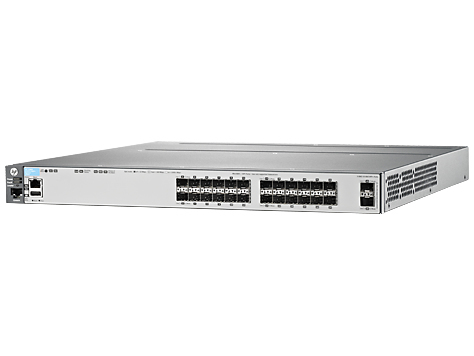

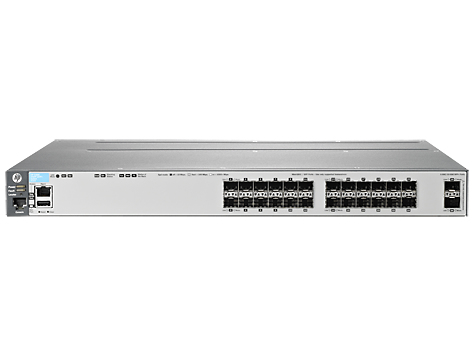

HP ProCurve 3800-24SFP-2SFP+ Managed L3 1U Grey
Model 3800-24SFP-2SFP+Part no. J9584AR#ABB
49 specifications
- Memory2048 MB
- Type1U
- Weight7.26 kg
- ColourGrey
- Switch typeManaged
- SFP module slots quantity24
Overview
- Memory
- 2048 MB
- Type
- 1U
- Weight
- 7.26 kg
- Colour
- Grey
- Switch type
- Managed
- SFP module slots quantity
- 24
- Brand
- HP
- Category
- Network Switch
- Model
- 3800-24SFP-2SFP+
- Part numbers
- J9584AR#ABB, J9584AABA, J9584A#ABA?LA
- Also known as
- HP ProCurve 3800-24SFP-2SFP+ Managed L3 1U Grey
Specifications
49 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 10000 |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 65500 entries |
| Switching capacity | 88 Gbit/s |
| Throughput | 65.4 Mpps |
| Latency (1 Gbps) | 2.8 µs |
| Latency (10 Gbps) | 1.9 µs |
| Packet buffer memory | 18 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Memory type | SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 4096 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 127 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 434 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 467.4 mm |
| Depth | 442.7 mm |
| Height | 43.2 mm |
| Weight | 7.26 kg |
