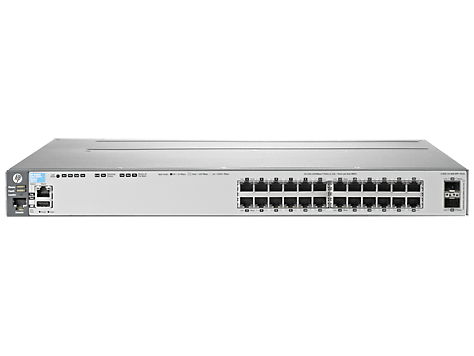

HP ProCurve 3800-24G-2SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

HP ProCurve 3800-24G-2SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

Model 3800-24G-2SFP+Part no. J9575ASEAN 887111007285

51 specifications
  • Memory2048 MB
  • Type1U
  • Weight6.92 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
See all specifications

Overview

Memory
2048 MB
Type
1U
Weight
6.92 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Brand
HP
Model
3800-24G-2SFP+
Part numbers
J9575AS, J9575AABA, J9575A?LA, J9575A#ABA?LA, J9575-61001, J9575AS#ABB
EAN / UPC
887111007285, 4053162644731, 887111503633
Also known as
HP ProCurve 3800-24G-2SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

Specifications

51 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity2
Console portRJ-45

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G supportYes
Port mirroringYes
Full duplexYes
IP routingYes
Routing entries10000
Auto-sensingYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table65500 entries
Switching capacity88 Gbit/s
Throughput65.4 Mpps
Latency (1 Gbps)2.8 µs
Latency (10 Gbps)1.9 µs
Packet buffer memory18 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourGrey

Performance

Built-in processorYes
Memory typeSDRAM
Internal memory2048 MB
Flash memory4096 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)127 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 55 °C
Heat dissipation434 BTU/h

Weight & dimensions

Width467.4 mm
Depth442.7 mm
Height43.2 mm
Weight6.92 kg

Sustainability

Sustainability certificatesENERGY STAR
