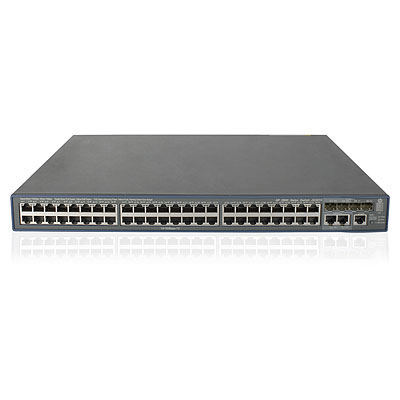

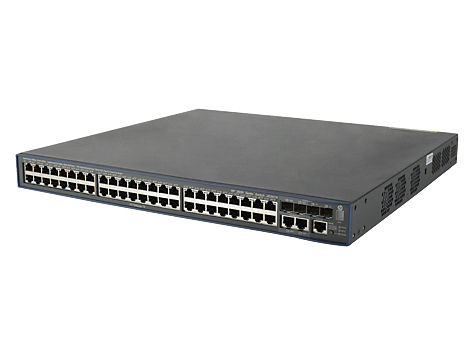

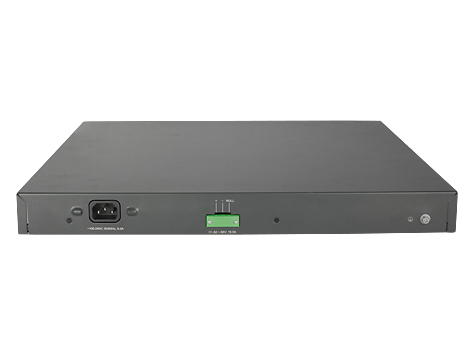

HP 3600-48-PoE+ v2 SI
Model 3600-48-PoE+ v2 SIPart no. JG307-61001
39 specifications
- Memory256 MB
- Type1U
- Weight10 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 256 MB
- Type
- 1U
- Weight
- 10 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- HP
- Category
- Network Switch
- Model
- 3600-48-PoE+ v2 SI
- Part numbers
- JG307-61001, JG307AABA, JG307BABA
- Also known as
- HP 3600-48-PoE+ v2 SI Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Specifications
39 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 17.6 Gbit/s |
| Throughput | 13.1 Mpps |
| Latency (10-100 Mbps) | 6 µs |
| Latency (1 Gbps) | 5 µs |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 820 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Acoustic pressure emissions | 43.5 dB |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 198 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439.9 mm |
| Depth | 420.1 mm |
| Height | 43.7 mm |
| Weight | 10 kg |
What people say
Reviews & ratings
HP 3600-48-PoE+ v2 SI
No reviews yet
Be the first to tell others how HP 3600-48-PoE+ v2 SI works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP 3600-48-PoE+ v2 SI

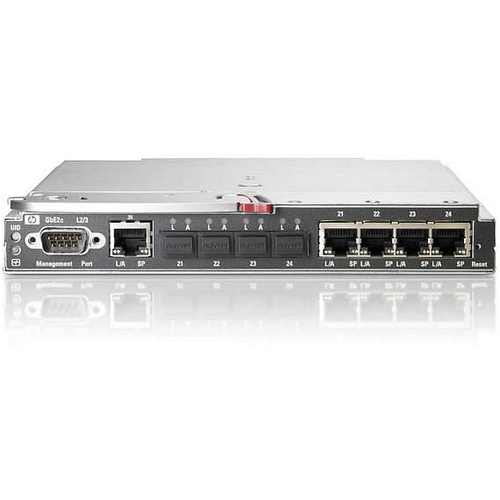

All network switch comparisons- HP 3600-48-PoE+ v2 SI vsHP GbE2c Ethernet Blade Switch for c-Class BladeSystemCompare specs
