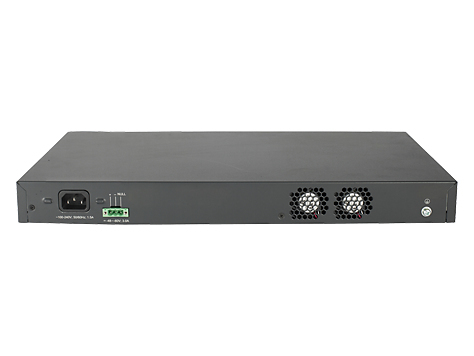

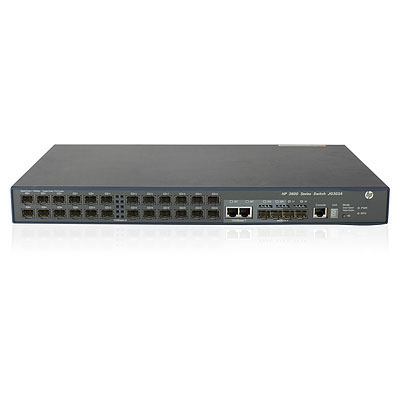

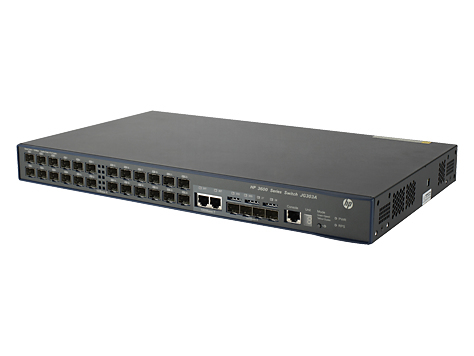

HP 3600-24-SFP v2 EI
Model 3600-24-SFP v2 EIPart no. JG303A?ETC2
36 specifications
- Type1U
- Weight5 kg
- ColourBlack
- Switch typeManaged
- SFP module slots quantity24
- Networking standardsIEEE 802.3, IEEE 802.3ab
Overview
- Type
- 1U
- Weight
- 5 kg
- Colour
- Black
- Switch type
- Managed
- SFP module slots quantity
- 24
- Networking standards
- IEEE 802.3, IEEE 802.3ab
- Brand
- HP
- Category
- Network Switch
- Model
- 3600-24-SFP v2 EI
- Part numbers
- JG303A?ETC2, JG303AABA
- Also known as
- HP 3600-24-SFP v2 EI Managed L3 1U Black
Specifications
36 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 12.8 Gbit/s |
| Throughput | 9.5 Mpps |
| Latency (10-100 Mbps) | 6 µs |
| Latency (1 Gbps) | 5 µs |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Acoustic pressure emissions | 43.5 dB |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 205 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439.9 mm |
| Depth | 260.1 mm |
| Height | 43.7 mm |
| Weight | 5 kg |
