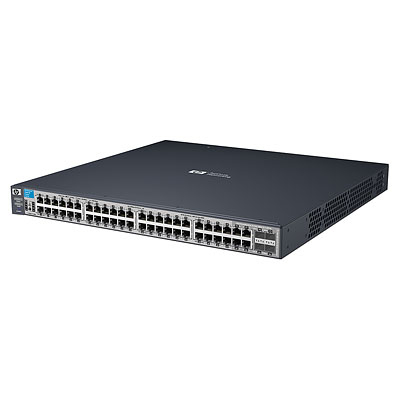

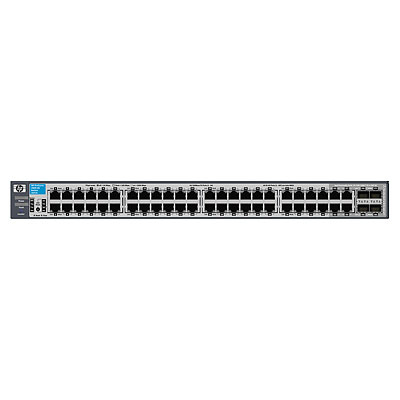

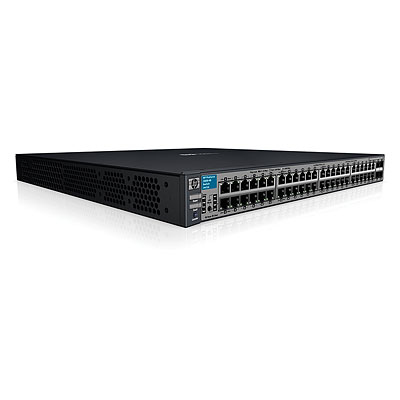

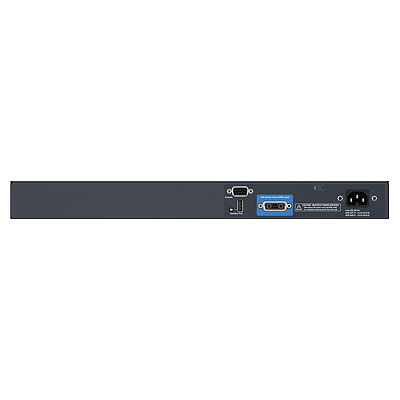

HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey
Model 3500-48Part no. J9472AZ
53 specifications
- ProcessorPowerPC MPC8540
- Memory256 MB
- Type1U
- Weight6.1 kg
- ColourGrey
- Switch typeManaged
Overview
- Processor
- PowerPC MPC8540
- Memory
- 256 MB
- Type
- 1U
- Weight
- 6.1 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- HP
- Category
- Network Switch
- Model
- 3500-48
- Part numbers
- J9472AZ, J9472-61201, J9472AABA, J9472A#ABA?LA
- Also known as
- HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey
Specifications
53 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Combo SFP ports quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 10000 |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 64000 entries |
| Switching capacity | 16.8 Gbit/s |
| Throughput | 12.5 Mpps |
| Latency (10-100 Mbps) | 3.4 µs |
| Latency (1 Gbps) | 2.9 µs |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC MPC8540 |
| Processor frequency | 666 MHz |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 4 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 96 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 465 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 443 mm |
| Depth | 430 mm |
| Height | 44 mm |
| Weight | 6.1 kg |
What people say
Reviews & ratings
HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey
No reviews yet
Be the first to tell others how HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey
All network switch comparisons- HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey vsHP 3600-48-PoE+ v2 EICompare specs
- HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey vsHP 3500-24G-PoE ylCompare specs
- HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey vsHP H SN6000 Managed 1U BlackCompare specs
- HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey vsHP 5500-24G-SFP EICompare specs

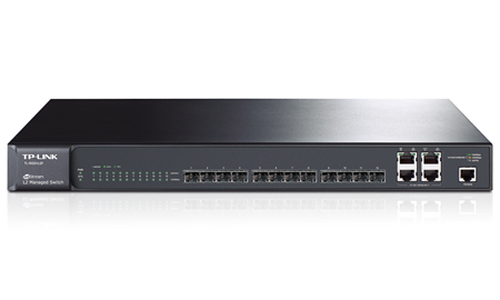

- HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey vsTP-Link TL-SG5412F network switch Managed L2 1U BlackCompare specs
- HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey vsAllied Telesis AT-IFS802SP / POE (W) -80Compare specs

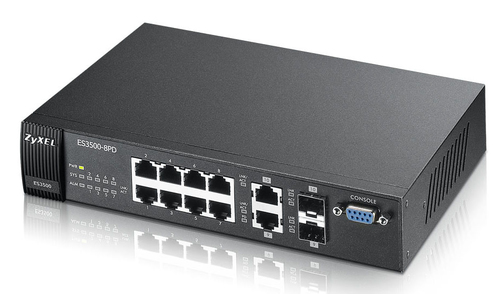

- HP ProCurve 3500-48 Managed L3 Fast Ethernet (10/100) 1U Grey vsZyxel ES3500-8PD Managed L2 BlackCompare specs
