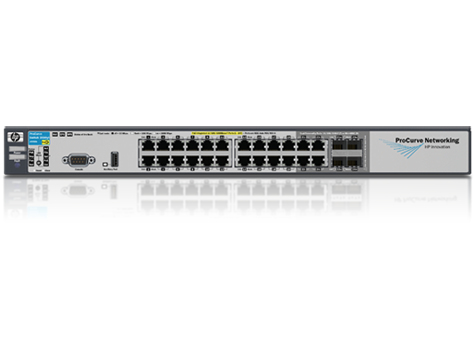

HP 3500-24G-PoE yl

HP 3500-24G-PoE yl

Model 3500-24G-PoE ylPart no. J8692-61301

51 specifications
  • ProcessorPowerPC MPC8540
  • Memory256 MB
  • Type1U
  • Weight6.4 kg
  • ColourGrey
  • Switch typeManaged
See all specifications

Overview

Processor
PowerPC MPC8540
Memory
256 MB
Type
1U
Weight
6.4 kg
Colour
Grey
Switch type
Managed
Brand
HP
Model
3500-24G-PoE yl
Part numbers
J8692-61301, J8692A?90010610, J8692AABA, J8692A#ABA?LA, J8692A?LA
Also known as
HP ProCurve 3500-24G-PoE yl Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Specifications

51 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G supportYes
Full duplexYes
IP routingYes
Routing entries10000
Auto MDI/MDI-XYes
Auto-sensingYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
VLAN supportYes

Data transmission

MAC address table64000 entries
Switching capacity101.8 Gbit/s
Throughput75.7 Mpps
Latency (1 Gbps)3.4 µs
Latency (10 Gbps)2.1 µs
Jumbo frames supportYes

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourGrey

Performance

Built-in processorYes
Processor modelPowerPC MPC8540
Processor frequency666 MHz
Memory typeDDR-SDRAM
Internal memory256 MB
Flash memory4 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)98 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget398 W

Operational conditions

Heat dissipation865 BTU/h

Weight & dimensions

Width443 mm
Depth392 mm
Height44 mm
Weight6.4 kg
