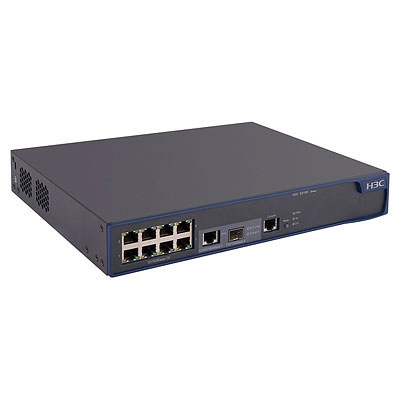

HP 3100-8-PoE EI
Model 3100-8-PoE EIPart no. JD311A#ABA?LA
49 specifications
- Memory64 MB
- Type1U
- Weight3 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 64 MB
- Type
- 1U
- Weight
- 3 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- HP
- Category
- Network Switch
- Model
- 3100-8-PoE EI
- Part number
- JD311A#ABA?LA
- Also known as
- HP A 3100-8-PoE EI Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey
Specifications
49 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Combo SFP ports quantity | 1 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 3.6 Gbit/s |
| Throughput | 2.6 Mpps |
| Packet buffer memory | 0.384 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 95 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 64 W |
Other features
| Specification | Value |
|---|---|
| Acoustic pressure emissions | 37.6 dB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 103 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 220 mm |
| Height | 43.6 mm |
| Weight | 3 kg |
What people say
Reviews & ratings
HP 3100-8-PoE EI
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP 3100-8-PoE EI
All network switch comparisons- HP 3100-8-PoE EI vsHP 5500-48G-PoE+-4SFP HI Switch w/2 Interface SlotsCompare specs

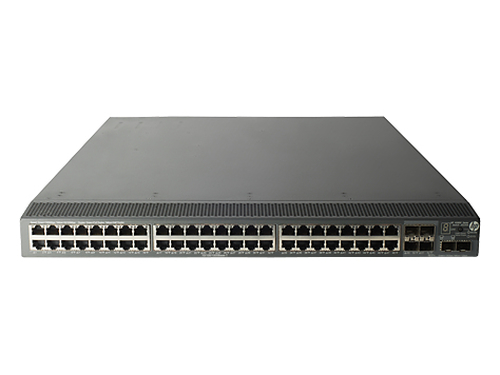

- HP 3100-8-PoE EI vsHP 5900CP-48XG-4QSFP+ Managed L3 BlackCompare specs
- HP 3100-8-PoE EI vsHP A 5800AF-48G Managed L3 Gigabit Ethernet (10/100/1000) 1U GreyCompare specs

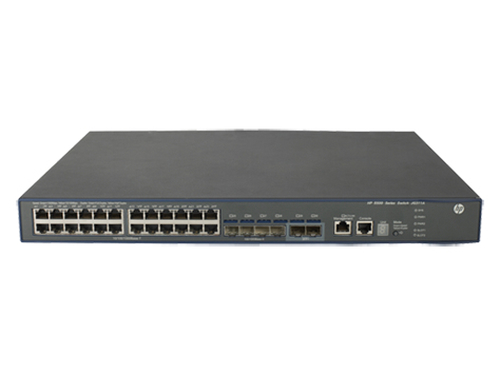

- HP 3100-8-PoE EI vsHP 5500-24G-4SFP HI Switch w/2 Interface SlotsCompare specs
- HP 3100-8-PoE EI vsStarTech.com 6 Port Unmanaged Industrial Gigabit Ethernet Switch w/ 4 PoE+ Ports and Voltage Regulation - DIN Rail / Wall-MountableCompare specs
- HP 3100-8-PoE EI vsStarTech.com 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch - 802.3af/at PoE+ Switch - Wall MountableCompare specs

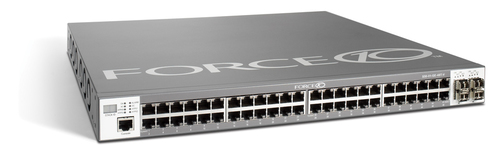

- HP 3100-8-PoE EI vsDell Force10 S50V-FTOS-PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U SilverCompare specs

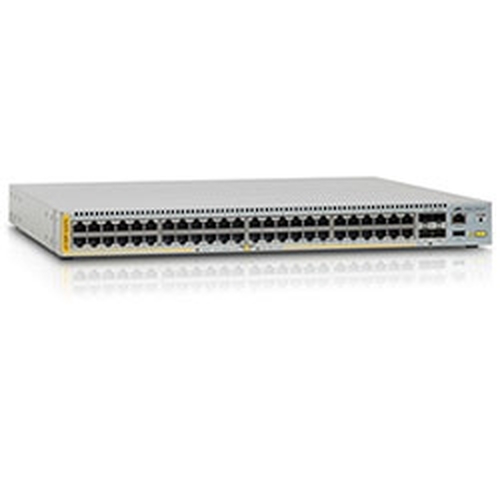

- HP 3100-8-PoE EI vsAllied Telesis AT-x510DP-52GTX Managed L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
