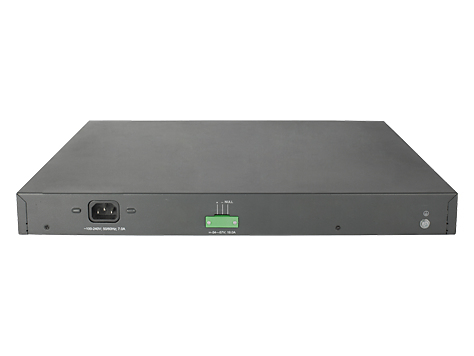

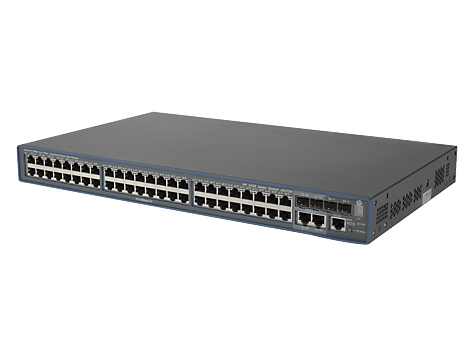

HP 3100-48 v2

HP 3100-48 v2

Model 3100-48 v2Part no. JG315AABAEAN 886111896448

50 specifications
  • Memory256 MB
  • Type1U
  • Weight3.5 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
See all specifications

Overview

Memory
256 MB
Type
1U
Weight
3.5 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
Brand
HP
Model
3100-48 v2
Part number
JG315AABA
EAN / UPC
886111896448
Also known as
HP A 3100-48 v2 Managed L2 Fast Ethernet (10/100) 1U Grey

Specifications

50 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity2
SFP module slots quantity4
Console portRJ-45

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G supportNo
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Auto-sensingYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table32000 entries
Switching capacity17.6 Gbit/s
Throughput13.1 Mpps
Latency (10-100 Mbps)6 µs
Latency (1 Gbps)5 µs
Packet buffer memory4 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourGrey

Performance

Memory typeSDRAM
Internal memory256 MB
Flash memory128 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)41 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Acoustic pressure emissions43.2 dB

Operational conditions

Heat dissipation140 BTU/h

Weight & dimensions

Width439.9 mm
Depth260.1 mm
Height43.7 mm
Weight3.5 kg
