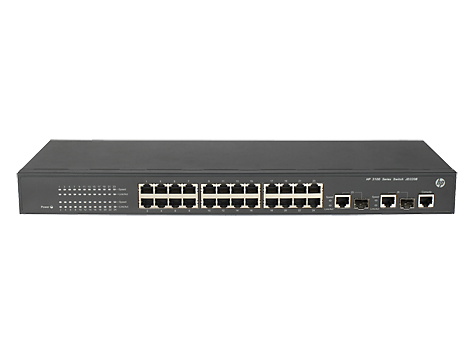

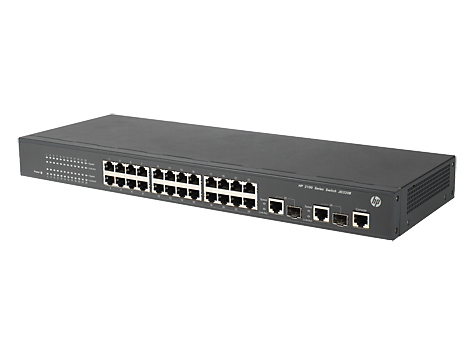

HP 3100-24 v2 EI

HP 3100-24 v2 EI

Model 3100-24 v2 EIPart no. JD320BABA

45 specifications
  • Type1U
  • Weight3.5 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • Networking standardsIEEE 802.3, IEEE 802.3u
See all specifications

Overview

Type
1U
Weight
3.5 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Networking standards
IEEE 802.3, IEEE 802.3u
Brand
HP
Model
3100-24 v2 EI
Part numbers
JD320BABA, JD320B#ABA?LA
Also known as
HP A 3100-24 v2 EI Managed L2 Fast Ethernet (10/100) 1U Grey

Specifications

45 specifications in 11 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Gigabit Ethernet (copper) ports quantity2
Combo SFP ports quantity2
Console portRJ-45

Network

Networking standardsIEEE 802.3, IEEE 802.3u
10G supportNo
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Auto-sensingYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table8192 entries
Switching capacity8.8 Gbit/s
Throughput6.5 Mpps
Latency (10-100 Mbps)6 µs
Latency (1 Gbps)5 µs

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourGrey

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)13 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Heat dissipation44 BTU/h

Weight & dimensions

Width439.9 mm
Depth160 mm
Height43.7 mm
Weight3.5 kg
