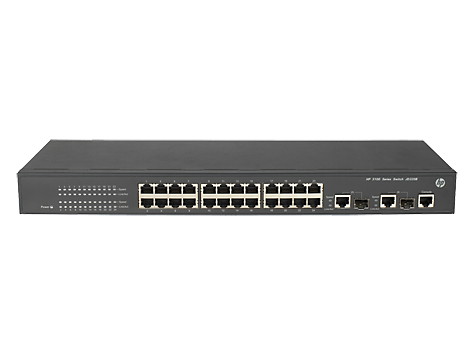

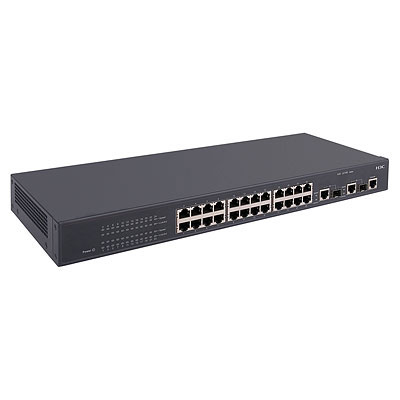

HP 3100-24 EI
Model 3100-24 EIPart no. JD320AABAEAN 885631184097
45 specifications
- Memory64 MB
- Type1U
- Weight3.5 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 64 MB
- Type
- 1U
- Weight
- 3.5 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- HP
- Category
- Network Switch
- Model
- 3100-24 EI
- Part number
- JD320AABA
- EAN / UPC
- 885631184097
- Also known as
- HP A 3100-24 EI Managed L2 Fast Ethernet (10/100) 1U Grey
Specifications
45 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 8.8 Gbit/s |
| Throughput | 6.5 Mpps |
| Packet buffer memory | 0.384 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 17 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 58 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 160 mm |
| Height | 43.6 mm |
| Weight | 3.5 kg |
