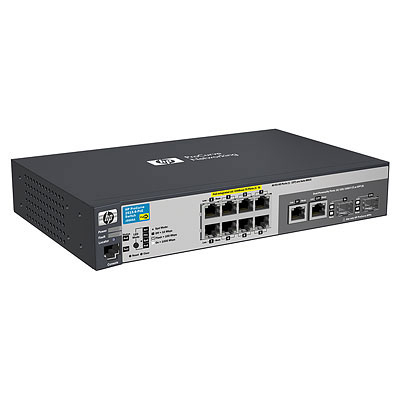

HP 2915-8G-PoE + UR954E

HP 2915-8G-PoE + UR954E

Model 2915-8G-PoE + UR954EPart no. J9562A UR954E

72 specifications
  • ProcessorPowerPC MPC8313
  • Memory128 MB
  • Speed1 Gbit/s
  • ConnectivityWired
  • Type1U
  • Weight1.66 kg
See all specifications

Overview

Processor
PowerPC MPC8313
Memory
128 MB
Speed
1 Gbit/s
Connectivity
Wired
Type
1U
Weight
1.66 kg
Brand
HP
Model
2915-8G-PoE + UR954E
Part number
J9562A UR954E
Also known as
HP ProCurve 2915-8G-PoE + UR954E Managed L3 Power over Ethernet (PoE) 1U

Specifications

72 specifications in 16 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Gigabit Ethernet (copper) ports quantity2
Console portRJ-45

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes
Full duplexYes
IP routingYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
Number of VLANs4096

Optical fiber

Transmission distance (max)3 km

Data transmission

MAC address table8000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity20 Gbit/s
Throughput14.8m pps
Number of queues4
Maximum data transfer rate1 Gbit/s
Packet buffer memory0.5 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Static port securityYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMPv1/v2c/v3
Data link protocolsLLDP
Supported network protocolsIPv6/Pv4, SNTPv4, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP

Design

Rack mountingYes
Form factor1U
LED indicatorsLAN, Power
SafetyCSA 22.2 No. 60950, CE Labeled, UL 60950-1, UL Listed, CAN/CSA 22.2 No. 60950, EN 60825, AS/NZS 60950, IEC 60950-1, EN 60950-1

Performance

Built-in processorYes
Processor modelPowerPC MPC8313
Processor frequency333 MHz
Memory typeDDR2-SDRAM
Internal memory128 MB
Flash memory32 MB

Power

Input current1.5 A
Input voltage100 - 240 V
Power consumption (typical)86 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Other features

Management platformHP PCM+, HP PCM
Latency<5.3µs @ 100Mb; <2.7µs @ 1000Mb
Dimensions (WxDxH)159.5 x 90 x 44.5 mm
Connectivity technologyWired
Input frequency50/60 Hz
Networking featuresGigabit Ethernet
Power LEDYes
Wi-FiNo
Connectivity LEDsYes
Dimensions (W x D x H) (imperial)254 x 159.5 x 44.5 mm (10 x 6.28 x 1.75")
Weight (imperial)1.66 kg (3.66 lbs)

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)15 - 95%
Operating altitude0 - 3000 m
Heat dissipation89 BTU/h

Weight & dimensions

Weight1.66 kg

Certificates

CertificationFCC
