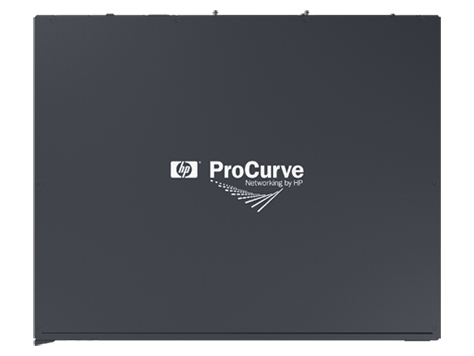

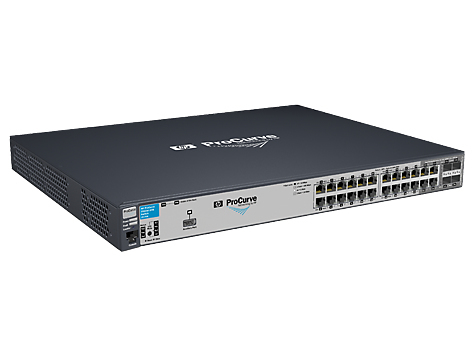

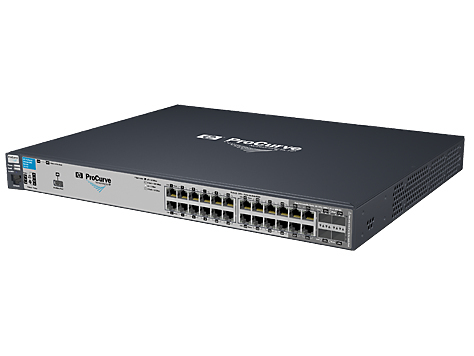

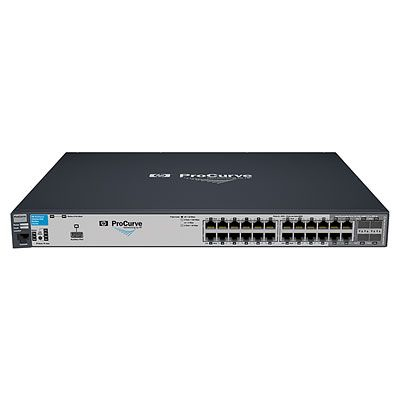

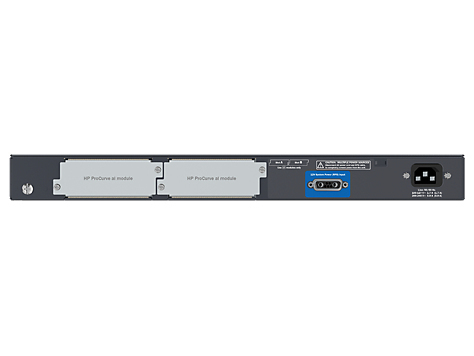

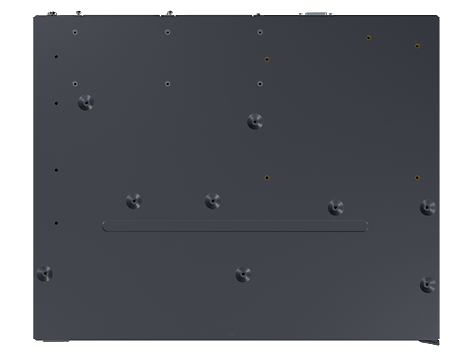

HP 2910-24G al

HP 2910-24G al

Model 2910-24G alPart no. J9145-69001EAN 5711045502958

44 specifications
  • Type1U
  • Weight4.95 kg
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • 10G supportYes
  • MAC address table16000 entries
See all specifications

Overview

Type
1U
Weight
4.95 kg
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
10G support
Yes
MAC address table
16000 entries
Brand
HP
Model
2910-24G al
Part numbers
J9145-69001, J9145A#86084472, J9145A#ABB*KIT*, J9145AR#ABB, J9145A#ABB?KIT, J9145AB-RFB +2 more
EAN / UPC
5711045502958
Also known as
HP ProCurve 2910-24G al Managed L3 Gigabit Ethernet (10/100/1000) 1U

Specifications

44 specifications in 11 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
MIB supportMIB II, Bridge MIB, RIPv2 MIB, RMONv2 MIB, SMON MIB, RADIUS Client MIB, RADIUS Accounting MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, Ping MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G supportYes
Port mirroringYes
Full duplexYes
IP routingYes
Routing entries2000
Auto MDI/MDI-XYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes

Data transmission

MAC address table16000 entries
Switching capacity128 Gbit/s
Throughput95 Mpps
Latency (1 Gbps)2.9 µs
Latency (10 Gbps)1.3 µs

Security

Access Control List (ACL)No
MAC address filteringYes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.7 A
Power consumption (typical)49 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 55 °C
Operating altitude0 - 3000 m
Heat dissipation279 BTU/h

Weight & dimensions

Width442 mm
Depth365.8 mm
Height44 mm
Weight4.95 kg
