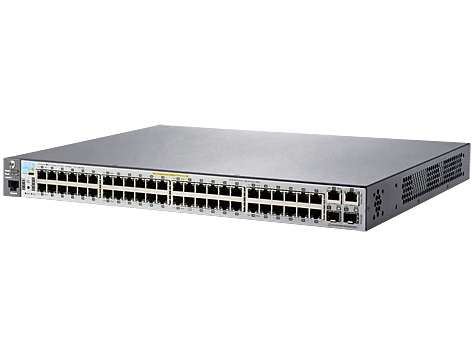

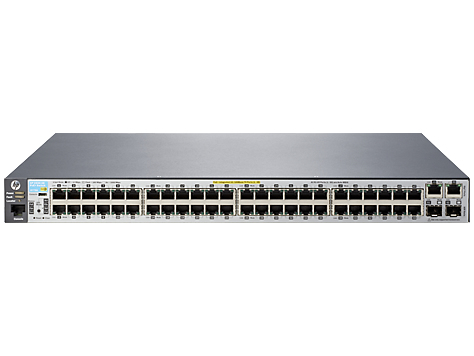

HP 2530-48-PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

HP 2530-48-PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Model 2530-48-PoE+Part no. J9778AABA

50 specifications
  • ProcessorARM9
  • Memory256 MB
  • Type1U
  • Weight4.58 kg
  • ColourGrey
  • Switch typeManaged
See all specifications

Overview

Processor
ARM9
Memory
256 MB
Type
1U
Weight
4.58 kg
Colour
Grey
Switch type
Managed
Brand
HP
Model
2530-48-PoE+
Part numbers
J9778AABA, J9778A#ABA?LA, J9778A_CBLBNDL, J9778A-HPN - NEW RETAIL
Also known as
HP 2530-48-PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Specifications

50 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Gigabit Ethernet (copper) ports quantity2
SFP module slots quantity2

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G supportNo
Copper ethernet cabling technology100BASE-TX, 10BASE-T
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Auto-sensingYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity17.6 Gbit/s
Throughput13 Mpps
Latency (10-100 Mbps)6.6 µs
Latency (1 Gbps)2.2 µs
Jumbo frames supportYes
Packet buffer memory3 MB

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factor1U
Product colourGrey

Performance

Built-in processorYes
Processor modelARM9
Processor frequency800 MHz
Memory typeDDR3-SDRAM
Internal memory256 MB
Flash memory128 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)441 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget382 W

Operational conditions

Heat dissipation170 BTU/h

Weight & dimensions

Width442 mm
Depth322.6 mm
Height44.5 mm
Weight4.58 kg
