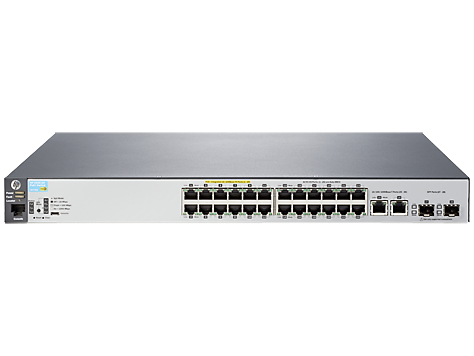

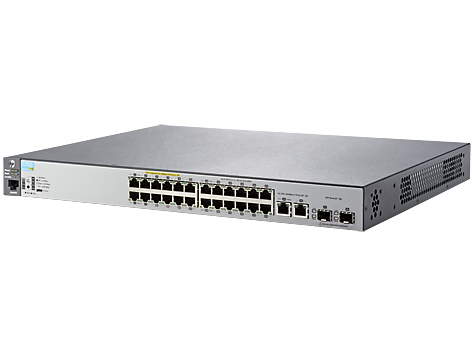

HP 2530-24-PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U

HP 2530-24-PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U

Model 2530-24-PoE+Part no. J9779A_CBLBNDL

45 specifications
  • ProcessorARM9
  • Memory256 MB
  • Type1U
  • Weight3.81 kg
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
See all specifications

Overview

Processor
ARM9
Memory
256 MB
Type
1U
Weight
3.81 kg
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Brand
HP
Model
2530-24-PoE+
Part numbers
J9779A_CBLBNDL, J9779AABA, J9779A#ABA?LA, J9779A#ABB?KIT, J9779A-HPN - NEW RETAIL, J9779A?LA
Also known as
HP 2530-24-PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U

Specifications

45 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
SFP module slots quantity2

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G supportNo
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Auto-sensingYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity12.8 Gbit/s
Throughput9.5 Mpps
Packet buffer memory1.5 MB

Security

Access Control List (ACL)Yes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U

Performance

Built-in processorYes
Processor modelARM9
Processor frequency800 MHz
Memory typeDDR3-SDRAM
Internal memory256 MB
Flash memory128 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)237 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget195 W

Operational conditions

Heat dissipation99 BTU/h

Weight & dimensions

Width442 mm
Depth322.6 mm
Height44.5 mm
Weight3.81 kg
