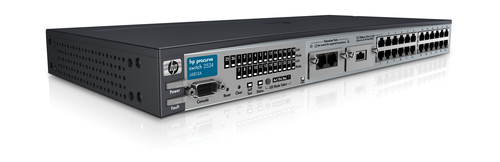

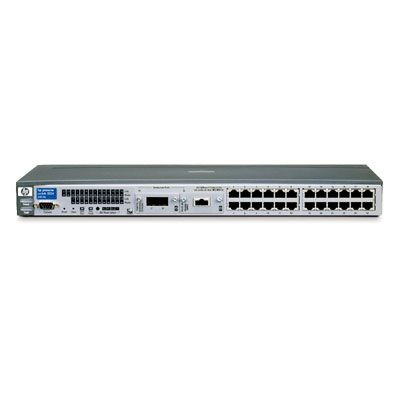

HP ProCurve 2524 Managed L2 Fast Ethernet (10/100) 1U Grey
Model 2524Part no. J4813A#ABB-RFB
34 specifications
- ProcessorARM7
- Memory26 MB
- Type1U
- Weight2.72 kg
- ColourGrey
- Switch typeManaged
Overview
- Processor
- ARM7
- Memory
- 26 MB
- Type
- 1U
- Weight
- 2.72 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- HP
- Category
- Network Switch
- Model
- 2524
- Part number
- J4813A#ABB-RFB
- Also known as
- HP ProCurve 2524 Managed L2 Fast Ethernet (10/100) 1U Grey
Specifications
34 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 9.6 Gbit/s |
| Throughput | 6.6 Mpps |
| Latency (10-100 Mbps) | 10 µs |
| Packet buffer memory | 6 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM7 |
| Processor frequency | 62.5 MHz |
| Internal memory | 26 MB |
| Flash memory | 2 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 36 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 203.2 mm |
| Height | 45.7 mm |
| Weight | 2.72 kg |
