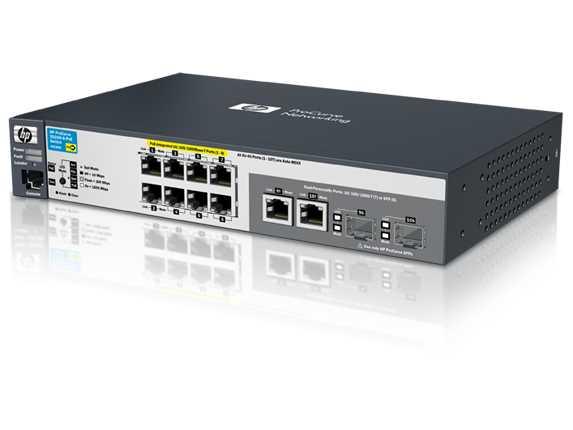

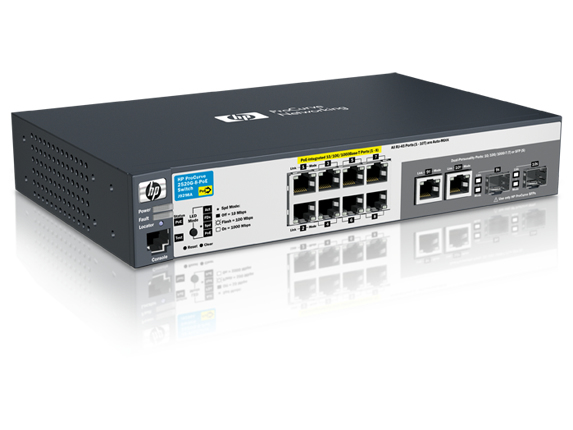

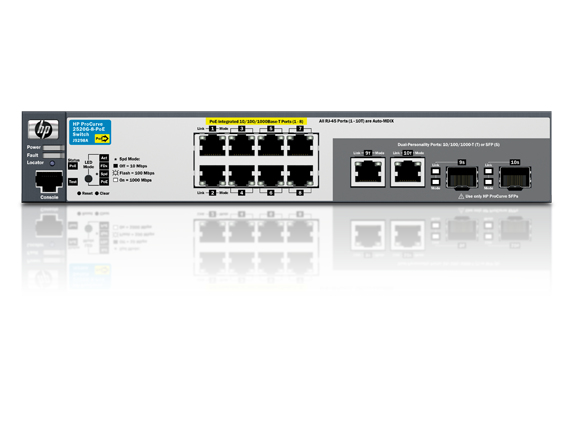

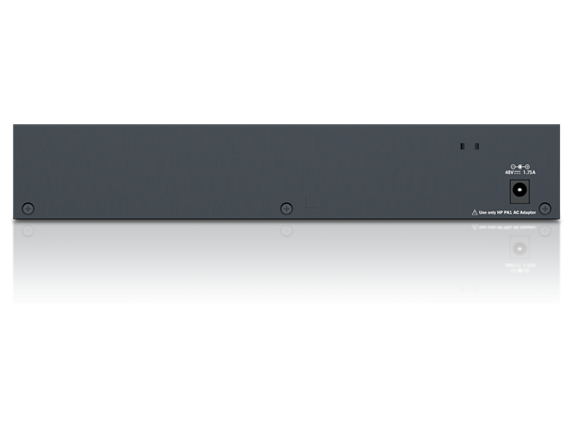

HP ProCurve 2520-8G-PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model 2520-8G-PoEPart no. J9298A#ABA QTY2EAN 884962888520
50 specifications
- ProcessorPowerPC MPC8313
- Memory128 MB
- Type1U
- Weight1.66 kg
- ColourBlack
- Switch typeManaged
Overview
- Processor
- PowerPC MPC8313
- Memory
- 128 MB
- Type
- 1U
- Weight
- 1.66 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- HP
- Category
- Network Switch
- Model
- 2520-8G-PoE
- Part numbers
- J9298A#ABA QTY2, J9298A#ABA?BN, J9298AABA, J9298AABAQTY2, J9298AR#ABB, J9298A#ABA?LA +1 more
- EAN / UPC
- 884962888520
- Also known as
- HP ProCurve 2520-8G-PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
50 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.8 Mpps |
| Latency (10-100 Mbps) | 5.3 µs |
| Latency (1 Gbps) | 2.7 µs |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC MPC8313 |
| Processor frequency | 266 MHz |
| Memory type | DDR2-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 86.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 67 W |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 89 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 254 mm |
| Depth | 159.5 mm |
| Height | 44.5 mm |
| Weight | 1.66 kg |
