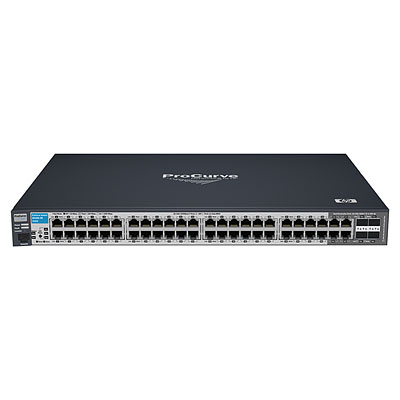

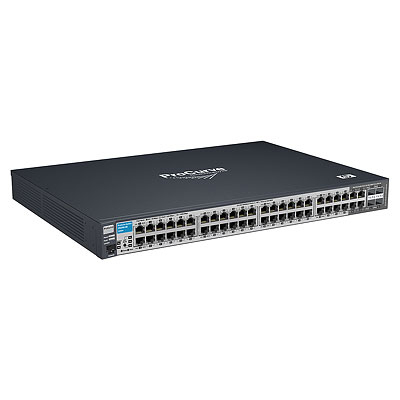

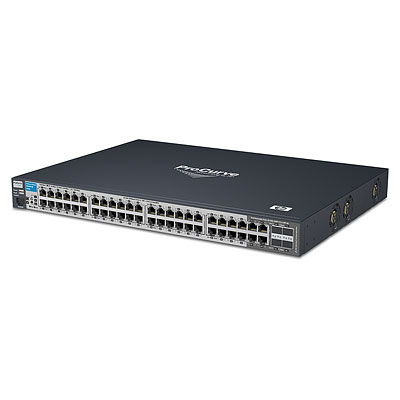

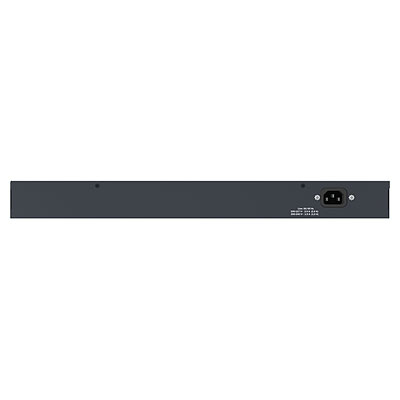

HP ProCurve 2510-48G Managed L2 1U Black
Model 2510-48GPart no. J9280A-RFEAN 5711045786808
42 specifications
- ProcessorMIPS
- Memory64 MB
- Speed1 Gbit/s
- ConnectivityWired
- Noise40.5 dB
- Type1U
Overview
- Processor
- MIPS
- Memory
- 64 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 40.5 dB
- Type
- 1U
- Brand
- HP
- Category
- Network Switch
- Model
- 2510-48G
- Part numbers
- J9280A-RF, J9280AZ, J9280A*3, J9280A#ABB#*KIT2, J9280A#*KIT, J9280A-C1
- EAN / UPC
- 5711045786808
- Also known as
- HP ProCurve 2510-48G Managed L2 1U Black
Specifications
42 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 96 Gbit/s |
| Throughput | 71.4 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| SSH/SSL support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, CLI |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | MIPS |
| Processor frequency | 264 MHz |
| Memory type | SDRAM |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Noise level | 40.5 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 92 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | < 5.4 µs (FIFO 64-byte packets) |
| Connectivity technology | Wired |
| Authentication method | RADIUS, TACACS+ |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 322.6 mm |
| Height | 43.2 mm |
| Weight | 3.9 kg |
