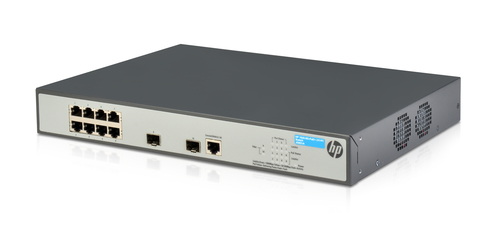

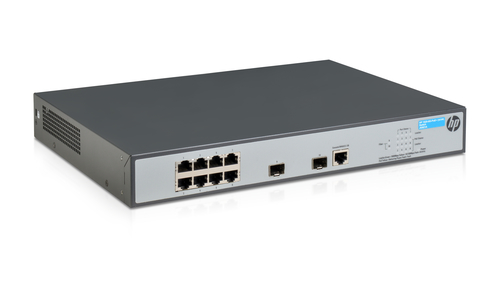

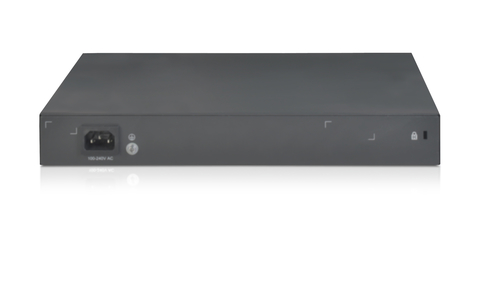

HP 1920-8G-PoE+ (65W)
Model 1920-8G-PoE+ (65W)Part no. JG921AABA
44 specifications
- ProcessorMIPS
- Memory128 MB
- Type1U
- Weight2.95 kg
- ColourGrey
- Switch typeManaged
Overview
- Processor
- MIPS
- Memory
- 128 MB
- Type
- 1U
- Weight
- 2.95 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- HP
- Category
- Network Switch
- Model
- 1920-8G-PoE+ (65W)
- Part numbers
- JG921AABA, JG921A ABA
- Also known as
- HP 1920-8G-PoE+ (65W) Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
44 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.8 Mpps |
| Latency (10-100 Mbps) | 5 µs |
| Latency (1 Gbps) | 5 µs |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | MIPS |
| Processor frequency | 500 MHz |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 94 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.95 kg |
