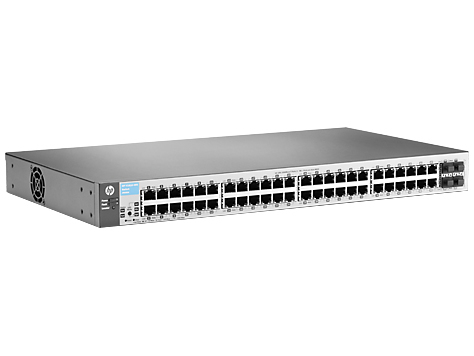

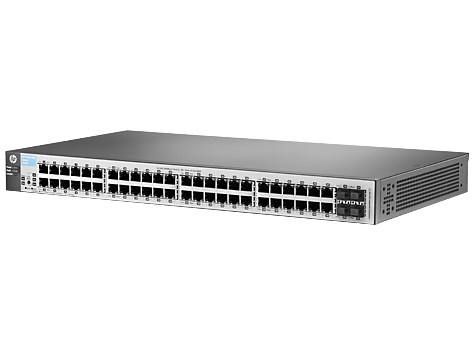

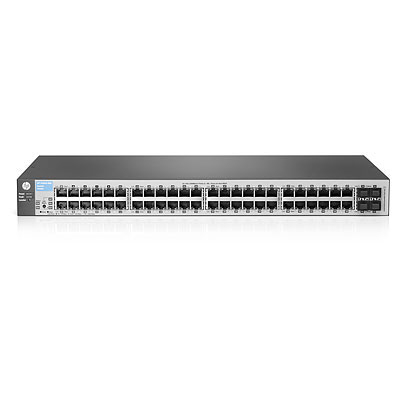

HP V 1810-48G Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Model 1810-48GPart no. J9660A#SETEAN 7330381792069
39 specifications
- Memory64 MB
- Type1U
- Weight2.86 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 64 MB
- Type
- 1U
- Weight
- 2.86 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- HP
- Category
- Network Switch
- Model
- 1810-48G
- Part numbers
- J9660A#SET, J9660A#ABB?BADBOX, J9660AABA
- EAN / UPC
- 7330381792069
- Also known as
- HP V 1810-48G Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
39 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Throughput | 77.4 Mpps |
| Latency (10-100 Mbps) | 8.4 µs |
| Latency (1 Gbps) | 3.2 µs |
| Packet buffer memory | 1.5 MB |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| Flash memory | 8 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 204 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 247.7 mm |
| Height | 44.5 mm |
| Weight | 2.86 kg |
