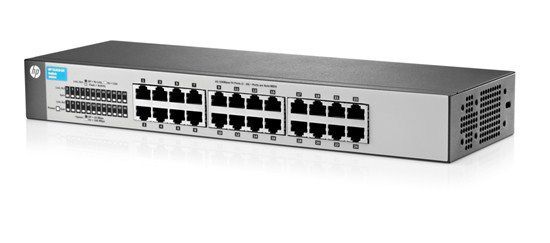

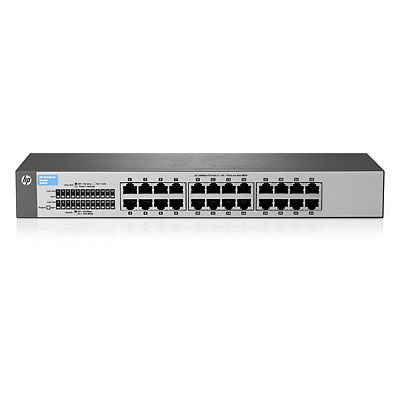

HP V 1410-24 Unmanaged Fast Ethernet (10/100) 1U Grey
Model 1410-24Part no. J9663AABA
29 specifications
- Memory0.016 MB
- Type1U
- Weight1.35 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 0.016 MB
- Type
- 1U
- Weight
- 1.35 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- HP
- Category
- Network Switch
- Model
- 1410-24
- Part numbers
- J9663AABA, J9663A#ABA?LA, J9663ASABA, J9663A?LA
- Also known as
- HP V 1410-24 Unmanaged Fast Ethernet (10/100) 1U Grey
Specifications
29 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 4.8 Gbit/s |
| Throughput | 3.5 Mpps |
| Latency (10-100 Mbps) | 11 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Internal memory | 0.016 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 4.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Heat dissipation | 17 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 336 mm |
| Depth | 168.9 mm |
| Height | 43.9 mm |
| Weight | 1.35 kg |
