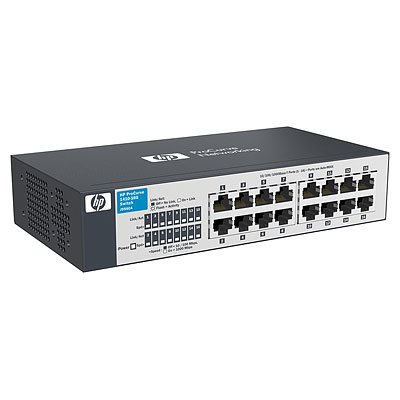

HP V 1410-16G 19U Black
Model 1410-16GPart no. J9560A+KIT18EAN 888182617090
36 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Type19U
- Weight650 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 19U
- Weight
- 650 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- HP
- Category
- Network Switch
- Model
- 1410-16G
- Part numbers
- J9560A+KIT18, J9560AABA, J9560A#ABA?LA, J9560ASABA
- EAN / UPC
- 888182617090
- Also known as
- HP V 1410-16G 19U Black
Specifications
36 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 32 Gbit/s |
| Throughput | 2380000 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 19U |
| Product colour | Black |
| LED indicators | Yes |
| Safety | CSA, EN, UL, IEC |
| Electromagnetic compatibility | FCC |
Performance
| Specification | Value |
|---|---|
| Flash memory | 0.5 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.1 A |
| Power consumption (typical) | 13 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 3.6 µs |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking features | Gigabit ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 208 mm |
| Depth | 112 mm |
| Height | 44 mm |
| Weight | 650 g |
