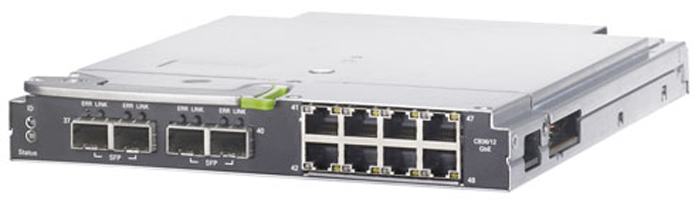

Fujitsu Primergy BX IBP 36/12
Model Primergy BX IBP 36/12Part no. VFY:SB11ASC010INEAN 4049699472282
36 specifications
- Memory256 MB
- Speed1 Gbit/s
- Weight1.35 kg
- ColourMulticolour
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity44
Overview
- Memory
- 256 MB
- Speed
- 1 Gbit/s
- Weight
- 1.35 kg
- Colour
- Multicolour
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 44
- Brand
- Fujitsu
- Category
- Network Switch
- Model
- Primergy BX IBP 36/12
- Part number
- VFY:SB11ASC010IN
- EAN / UPC
- 4049699472282
- Also known as
- Fujitsu Primergy BX IBP 36/12 Managed L2+ Multicolour
Specifications
36 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑SX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Multicolour |
| LED indicators | Link, Power, Status |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 64 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 35 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 96 Gbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 192.6 mm |
| Depth | 267.9 mm |
| Height | 28 mm |
| Weight | 1.35 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, GS, ULc/us, FCC, CB, RoHS, WEEE, VCCI, C-Tick, BSMI |
