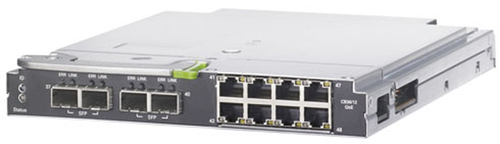

Fujitsu Primergy BX/IBP 1GB 36/8+2
Model Primergy BX/IBP 1GB 36/8+2Part no. VFY:SB110SC010INEAN 4049699472275
56 specifications
- Memory512 MB
- Speed10 Gbit/s
- ConnectivityWired
- Weight1.36 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 512 MB
- Speed
- 10 Gbit/s
- Connectivity
- Wired
- Weight
- 1.36 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Fujitsu
- Category
- Network Switch
- Model
- Primergy BX/IBP 1GB 36/8+2
- Part number
- VFY:SB110SC010IN
- EAN / UPC
- 4049699472275
- Also known as
- Fujitsu Primergy BX/IBP 1GB 36/8+2 Managed L2+ Grey
Specifications
56 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | Private-MIB, RMON-MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Fiber ports quantity | 2 |
| Fiber optic connector | LC |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1000 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-ER, 10GBASE-EW, 10GBASE-LR, 10GBASE-LRM, 10GBASE-LW, 10GBASE-SR, 10GBASE-SW |
| Transmission distance (max) | 0.3 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 10 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSL/TLS |
| Static port security | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv1/v2/v3, CLI, SNMPv1/v2c/v3 |
| Data link protocols | LLDP |
| Supported network protocols | IPv4, IPv6, FTP, TFTP, BOOTP, SNTPv4, CDPv2, GVRP, GARP, GMRP, VTPv1/v2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | LAN, Link, Yes |
| Safety | ULc/us |
| Compatible products | BX9xx |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 64 MB |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power consumption (typical) | 74 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 8µs |
| Dimensions (WxDxH) | 192.6 x 267.9 x 27.9 mm |
| Connectivity technology | Wired |
| Bandwidth | 152 Gbit/s |
| Networking features | Gigabit Ethernet |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 252.5 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.36 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | GS, CE, FCC, CB, RoHS, WEEE, VCCI, BSMI, C-Tick |
